100H Screwable Levels
ID：100H

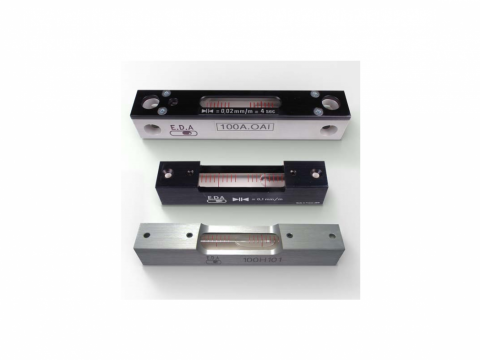

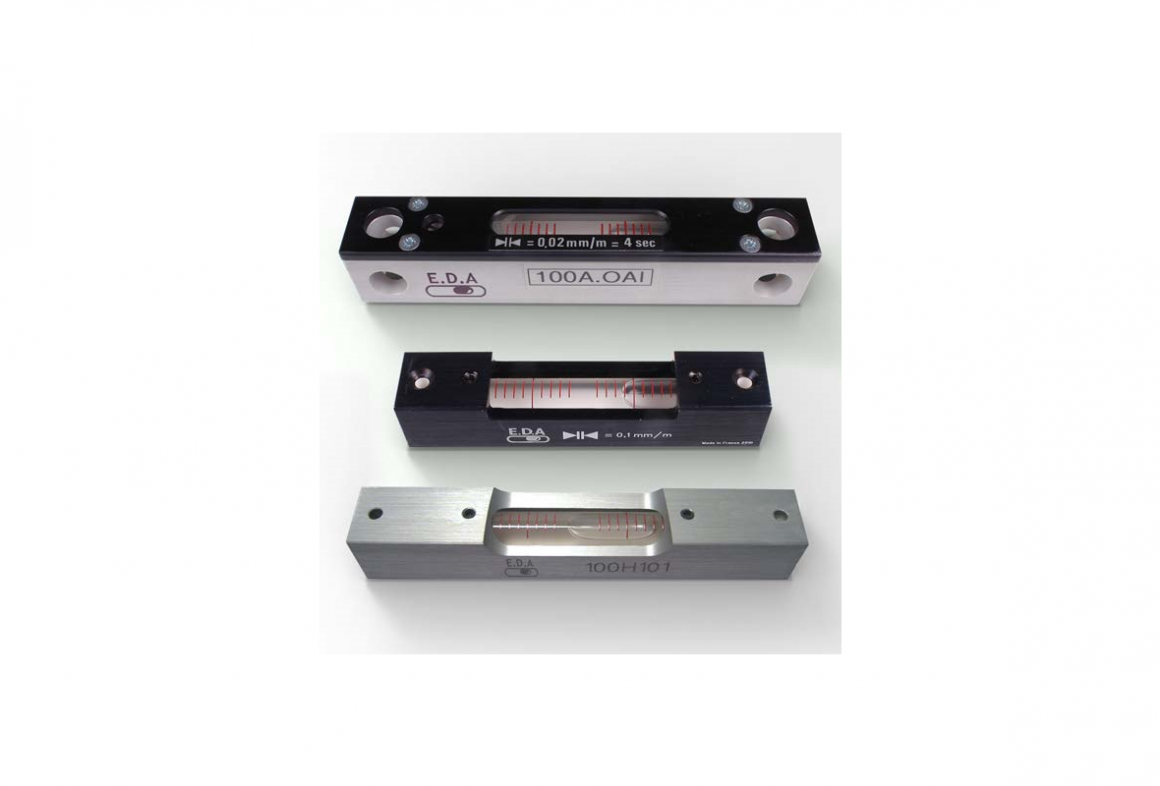

100 H - Small screw-on levels
-
100 H - length: 50 mm
- Lightweight anodized alloy
- Dimensions: 50x12 mm, with 2 screw holes Ø 3.1 - interaxial distance: 42 mm
100 H - length: 80 mm- Lightweight anodized alloy
- Dimensions: 80x16 mm, with 2 screw holes Ø 3.1 - interaxial distance: 70 mm
100 H - length: 100 mm- Lacquered steel
- Dimensions: 100x22x22 mm, with 2 screw holes Ø 3.1 - interaxial distance: 90 mm
Model Sensitivity (mm/m) 100 H 50 mm Bent vial 100 H1 50 mm 1 100 H2 50 mm 2 100 H0.4 50 mm 0.4 100 H1 80 mm 1 100 H0.4 80 mm 0.4 100 H0.1 80 mm 0.1 100 H0.05 80 mm 0.05 100 H0.1 100 mm 0.1 100 H0.05 100 mm 0.05 100 H0.02 100 mm12 0.02
