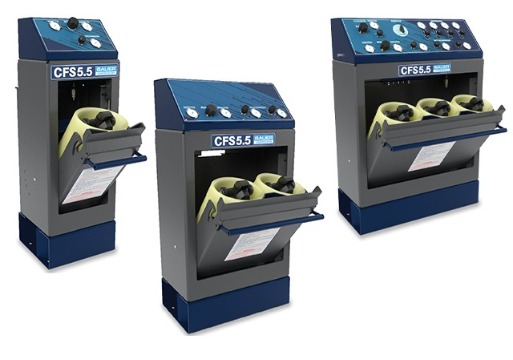

CFS5.5 Fill Stations

ID:Bauer CFS 5.5
The BAUER CFS 5.5 Series of Containment SCBA/SCUBA Fill Stations prioritizes safety and quality. The CFS 5.5 containers undergo independent testing and meet the rigorous standards and strict test parameters set by NFPA 1989 and NFPA 1901. We have exceeded the requirements of 88 cubic feet and 4500 PSIG and reached 110 cubic feet and 5500 PSIG. Formed plate steel and fewer weldments significantly improve the safety of the cylinder failure. We have also considered ergonomics when we designed, incorporating an "easy load" door design that allows you to open and close the door with less than 18 lbs of force without hyperextending your hand or wrist.
  • CFS5.5 Fill Station

    Product information

    1~3 fill positions

     Mobile or Stationary

     Dual function cascade controls with remote fill outlets

     Control panel with an adjustable regulator, relief valve, manual control valve and pressure gauge

     Convenient door handle "easy load"

    Standards compliant

    NFPA 1901

    NFPA 1989

    Technical Data
    Model Dimension (LxWxH) Weight
    CFS5.5-1S 457 x 533 x 1397 mm 196 kg
    CFS5.5-1M 457 x 533 x 990 mm 163 kg
    CFS5.5-2S 762 x 533 x 1346 mm 304 kg
    CFS5.5-2M 762 x 533 x 990 mm 249 kg
    CFS5.5-3S 1041 x 533 x 1346 mm 411 kg
    CFS5.5-3M 1041 x 533 x 990 mm 336 kg
