LEGACY Air Compressors

ID：Bauer LEGACY

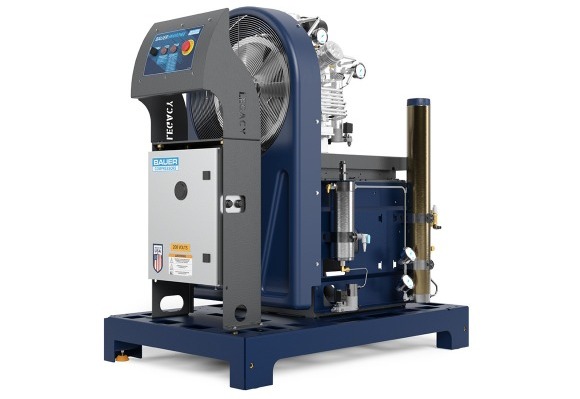

The LEGACY™ high-pressure air compressor is manufactured based on the design of the VERTECON® Frame. It offers simplicity with PLC Control. Instead of the touchscreen and HMI system, it has a simple illuminated On/Off switch and a pair of flashing indicator lamps. These lamps flash a code to represent fault warnings and shutdowns.

Features Video

LEGACY

Product information

Dimension(LxWxH)：1118 x 838 x 1372 mm

Weight：286～488 kg

SCBA Cylinders：6000 psi (414 bar)

Number of Stages：3、4

Charging Rate(SCFM)：8～18

Charging Rate(l/min)：227～510

*Based on recharging an 80 cubic foot tank from 500 to 3000 psig

Technical Data

Model	Charging Rate		Number of Stage	Motor		FAD²	RPM	Purification System
	SCFM	l/min		HP	kW
6000 PSIG (414 BAR)
Legacy 2-8 E1/E3	8	227	3	7.5	5.6	7.5	1450	P2 B-SECURUS
Legacy 2-13 E1/E3	13	368	4	10	7.5	10.8	1420	P2 B-SECURUS
Legacy 2-18 E3	18	510	4	15	11	15	1325	P5 B-SECURUS

*E1=Single phase electric, 230 VAC/60 Hz
*E3=Threephase electric, 208 VAC/60 Hz

BAUER LEGACY™ Presentation
