LEGACY PLUS Air Compressors

ID：Bauer LEGACY PLUS

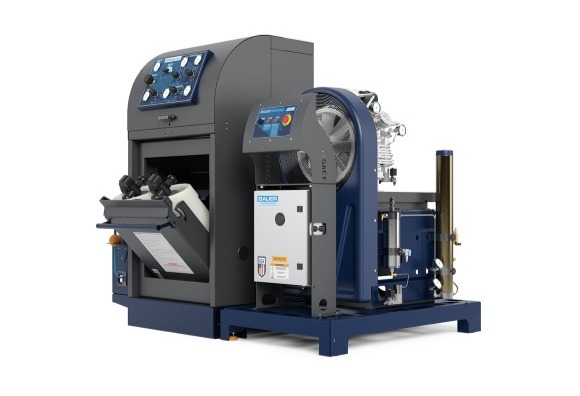

The LEGACY PLUS combined LEGACY Compressor with the CFS5.5®-2/PLUS, a two-position fully NFPA compliant (1901 & 1989) SCBA/SCUBA fill station. It includes an attractive, ergonomically designed, two-bank cascade fill control panel and an integral air storage system with two 6000 PSIG UN/ISO air storage cylinders. The LEGACY PLUS™ can substitute ASME air storage cylinders with UN air storage cylinders and add the optional regulated remote fill outlet, which includes a high-pressure hose reel and 100 feet of 6000 PSIG high-pressure hose.

Features

LEGACY PLUS

Product information

LEGACY Compressor Module

Dimension(LxWxH)：1118 x 838 x 1372 mm

Weight：286～488 kg

Fill Station Module

Dimension(LxWxH)：737 x 940 x 1778 mm

Weight：544～726 kg

SCBA Cylinders：6000 psi (414 bar)

Number of Stages：3、4

Standards compliant

NFPA 1901

NFPA 1989

Technical Data

Model	Charging Rate		Number of Stages	Motor		FAD²	RPM	Purification System
	SCFM	l/min		HP	kW
6000 PSIG (414 BAR)
Legacy 2-8 E1 (230 volt)	8	227	3	7.5	5.6	7.5	1450	P2 B-SECURUS
Legacy 2-8 E3 (208 volt)	8	227	3	7.5	5.6	7.5	1450	P2 B-SECURUS
Legacy 2-13 E1 (230 volt)	13	368	4	10	7.5	10.8	1420	P2 B-SECURUS
Legacy 2-13 E3 (208 volt)	13	368	4	10	7.5	10.8	1420	P2 B-SECURUS
Legacy 2-18 E3 (208 volt)	18	510	4	15	11	15	1325	P5 B-SECURUS

*E1=Single phase electric, 230 VAC/60 Hz
*E3=Threephase electric, 208 VAC/ 60 Hz
