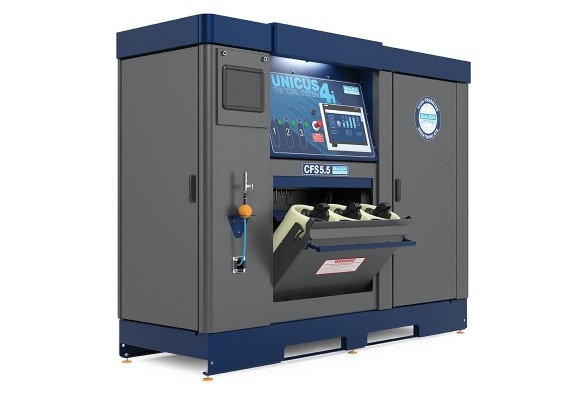

UNICUS-4i Air Compressors

ID:Bauer UNICUS-4i
The UNICUS® 4i is available in either 5000 or 6000 psig with discharge capacities ranging from a 13 scfm charge rate to 26 scfm charge rate. This game-changing filling station employs our state-of-the-art control system centered around a 15-inch HMI touch screen interface, which allows the operator to manage the entire system from the single-point touch screen. UNICUS®4i has innovative optional features, such as RFID Reader. It can read and record data from the RFID-equipped cylinders.
  • UNICUS-4i

    Product information

    Dimension(LxWxH):2565 x 965 x 2032 mm

    Weight:1973~2064 kg

    *Weights are based on a unit equipped with 4 ASMEs

    SCBA Cylinders:5000 psi (345 bar)、6000 psi (414 bar)

    Number of Stages:4、5

    Charging Rate(SCFM):13~26.4

    Charging Rate(l/min):368~748

    Standards compliant

    NFPA 1901

    NFPA 1989

    Technical Data
    Model Charging Rate Number of Stages Motor FAD² Purification System
      SCFM l/min   HP kW
    5000 PSIG (345 BAR)
    UNICUS 4i-26-E3 26.4 748 4 20 15 22 P5 B-SECURUS
    UNICUS 4i-20-E3 21 595 4 15 11 17.5 P5 B-SECURUS
    6000 PSIG (414 BAR)
    UNICUS 4i-13-E1/E3 13 368 4 10 7.5 10.8 P2 B-SECURUS
    UNICUS 4i-18-E3 18 510 4 15 11 15 P5 B-SECURUS
    UNICUS 4i-25-E3 25.2 714 5 20 15 21 P5 B-SECURUS

  • BAUER UNICUS® 4i - INNOVATION AT YOUR FINGERTIPS


    BAUER UNICUS® 4i Operational How-to
