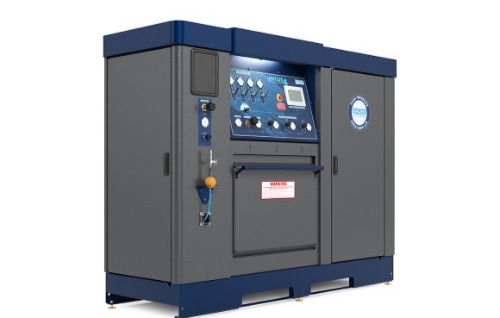

UNICUS-4S Air Compressors

ID:Bauer UNICUS-4S
The UNICUS® 4S is available in either 5000 or 6000 psig with discharge capacities ranging from a 13 scfm charge rate to 26 scfm charge rate. All requisite panels are equipped with sound attenuated material. An integral rack was built to accommodate four (4) storage cylinders as standard, along with the piping. Additionally, BAUER provide two (2) ASME coded air storage cylinders as a part of the standard scope of supply.
  • UNICUS-4S

    Product information

    Dimension(LxWxH):2565 x 965 x 2032 mm

    Weight:1973~2064 kg

    SCBA Cylinders :5000 psi (345 bar)、6000 psi (414 bar)

    Number of Stages:4、5

    Charging Rate(SCFM):13~26.4

    Charging Rate(l/min):368~748

    *Based on recharging an 80 cubic foot tank from 500 to 3000 psig

    Standards compliant

    NFPA 1901

    NFPA 1989

    Technical Data
    Model Charging Rate Number of Stages Motor FAD² RPM Purification System
      SCFM l/min   HP kW
    5000 PSIG (345 BAR)
    UN 4S/20-E3 21 595 4 15 11 17.5 1300 P5 B-SECURUS
    UN 4S/26-E3 26.4 748 4 20 15 22 1350 P5 B-SECURUS
    6000 PSIG (414 BAR)
    UN 4S/13H-E1/E3 13 368 4 10 7.5 10.8 1420 P2 B-SECURUS
    UN 4S/18H-E3 18 510 4 15 11 15 1325 P5 B-SECURUS
    UN 4S/25H-E3 25.2 714 5 20 15 21 1300 P5 B-SECURUS

    *Based on recharging an 80 cubic foot tank from 500 to 3000 psig
