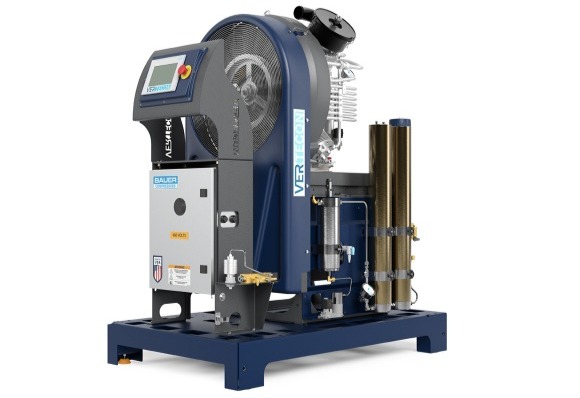

VERTECON Air Compressors

ID：Bauer VERTECON

VERTECON has been an industry leader for many years. A refreshed HMI operations panel and electrical control system allow you to customize the system to meet your specific requirements. It now features an integral base that eliminates the guesswork of product placement, ensuring correct installation for system ventilation and maintenance accessibility.

Features Video

VERTECON

Product information

VEC05-VEC13

Dimension(LxWxH)：1372 x 863.6 x 12.4 mm

Weight：363～408.2 kg

VEC18-VEC26

Dimension(LxWxH)：1372 x 863.6 x 1600.2 mm

Weight：544.3～589.7 kg

SCBA Cylinders：5000 psi (345 bar)、6000 psi (414 bar)

Number of Stages：3、4、5

Technical Data

Model	Charging Rate		Number of Stages	Motor		FAD²	RPM	Purification System
	SCFM	l/min		HP	kW
5000 PSIG (345 BAR)
VEC08-E1/E3	8.4	238	3	7.5	5.6	7	1250	P31
VEC20-E3	21	595	4	15	11	17.5	1300	P5
VEC26-E3	26.4	748	4	20	15	22	1350	P5
6000 PSIG (414 BAR)
VEC05-E1/E3	5	142	3	5	3.7	4	1050	P2
VEC10-E1/E3	9.7	275	4	7.5	5.6	8.1	1180	P2
VEC13-E1/E3	13	368	4	10	7.5	10.8	1420	P2
VEC18-E3	18	510	4	15	11	15	1325	P5
VEC25-E3	25.2	714	5	20	15	21	1300	P5

*E1= Single phase electric, 230 VAC/60 Hz.
*E3=Three phase electric, 208/230/460 VAC/60 Hz.
Other voltages are available on request.

BAUER VERTECON® Presentation
