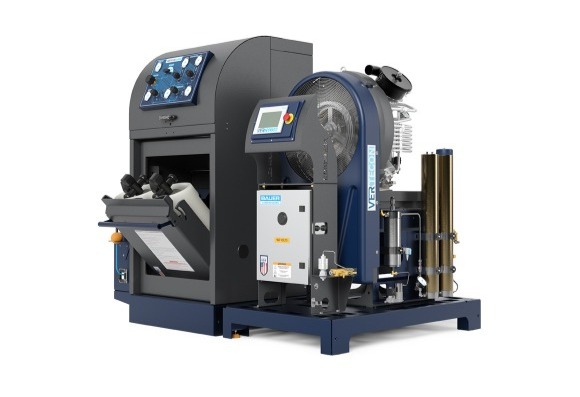

VERTECON PLUS Air Compressors
ID：Bauer VERTECON PLUS
The VERTECON PLUS combined VERTECON® Compressor with the CFS5.5®-2/PLUS, a two-position fully NFPA compliant (1901 & 1989) SCBA/SCUBA fill station. It includes an ergonomically designed, two-bank cascade fill control panel and an integral air storage system comprising two 6000 PSIG UN/ISO air storage cylinders. The VERTECON PLUS can substitute ASME air storage cylinders into UN air storage cylinders and add the optional regulated remote fill outlet, which includes a high-pressure hose reel and 100 feet of 6000 PSIG high-pressure hose.
-
VERTECON PLUS
Product information
VERTECON Compressor Module
Dimension(LxWxH)：1372 x 863.6 x 1422.4 mm (VEC05-13)
Dimension(LxWxH)： 1372 x 863.6 x 1600.2 mm (VEC18-26)
Weight：363～408.2 kg (VEC05-13)
Weight：544.3～589.7 kg (VEC18-26)
Fill Station Module
Dimension(LxWxH)：737 x 940 x 1778 mm
Weight：544～726 kg
SCBA Cylinders：5000 psi (345 bar)、6000 psi (414 bar)
Number of Stages：3、4、5
Standards compliant
NFPA 1901
NFPA 1989
Technical DataMedel Charging Rate Number of Stages Motor FAD² RPM Purification System SCFM l/min HP kW 5000 PSIG (345 BAR) VEC08-E1/E3 8.4 238 3 7.5 5.6 7 1250 P31 VEC20-E3 21 595 4 15 11 17.5 1300 P5 VEC26-E3 26.4 748 4 20 15 22 1350 P5 6000 PSIG (414 BAR) VEC05-E1/E3 5 142 3 5 3.7 4 1050 P2 VEC10-E1/E3 9.7 275 4 7.5 5.6 8.1 1180 P2 VEC13-E1/E3 13 368 4 10 7.5 10.8 1420 P2 VEC18-E3 18 510 4 15 11 15 1325 P5 VEC25-E3 25.2 714 5 20 15 21 1300 P5 *E1= Single phase electric, 230 VAC/60 Hz
*E3=Three phase electric, 208/230/460 VAC/60 Hz.
Other voltages are available on request
