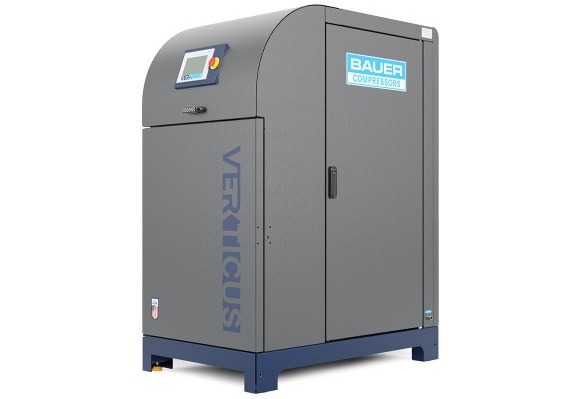

VERTICUS Air Compressors

ID：Bauer VERTICUS

VERTICUS is a high-pressure air compressor with sound attenuation incorporated into every possible panel to provide a quiet operating level of approximately 72 dB within one meter. One package size accommodates BAUER high-pressure air-cooled compressors ranging from 5 to 20 HP motors. The new, larger, 7-inch HMI enhances the monitoring system functions.

Features Video

VERTICUS

Product information

Dimension(LxWxH)：1397 x 889 x 1778 mm

Weight：453.6～635 kg

SCBA Cylinders：5000 psi (345 bar)、6000 psi (414 bar)

Number of Stages：3、4、5

Charging Rate(SCFM)：5～26.4

Charging Rate(l/min)：142～748

*Based on recharging an 80 cubic foot tank from 500 to 3000 psig

Technical Data

Model	Charging Rate		Number of Stages	Motor		FAD²	RPM	Purification System
	SCFM	l/min		HP	kW
5000 PSIG (345 BAR)
VAC20-E3	21	595	4	15	11	17.5	1300	P5 B-SECURUS
VAC26-E3	26.4	748	4	20	15	22	1350	P5 B-SECURUS
6000 PSIG (414 BAR)
VAC5-E1/E3	5	142	3	5	3.7	4	1050	P2 B-SECURUS
VAC08-E1/E3	8	227	3	7.5	5.6	7	1450	P2 B-SECURUS
VAC10-E1/E3	9.7	275	4	7.5	5.6	8.1	1180	P2 B-SECURUS
VAC13-E1/E3	13	368	4	10	7.5	10.8	1420	P2 B-SECURUS
VAC18-E3	18	510	4	15	11	15	1325	P5 B-SECURUS
VAC25-E3	25.2	714	5	20	15	21	1300	P5 B-SECURUS

*E1=Single phase electric, 230 VAC/60 Hz
*E3=Three phase electric, 208/230/460 VAC/60 Hz
Other voltages are available on request.
