VERTICUS PLUS Air Compressors

ID:Bauer VERTICUS PLUS

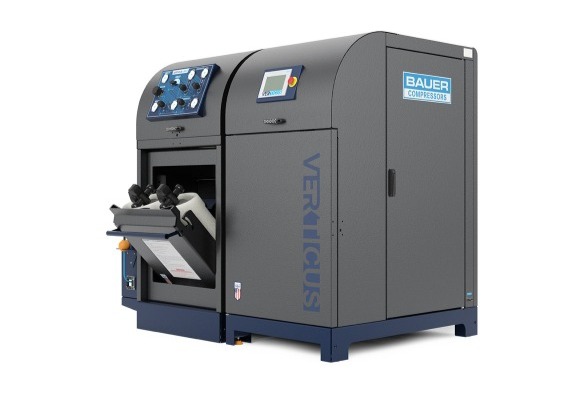

The BAUER VERTICUS PLUS combines the same package amenities found in the BAUER VERTICUS high-pressure breathing air compressor system with a free-standing and multi-functional fill station module. It includes two bank dual-function cascade controls, an integral air storage rack with two UN code air storage cylinders, and a 3-way selector valve to choose air from the compressor or onboard air storage system. You can install the two modules together as an all-in-one configuration or separately. It depends on the installation site specifics.
  • VERTICUS PLUS

    Product information

    VERTICUS Compressor Module

    Dimension(LxWxH):1397 x 889 x 1778 mm

    Weight:453.6~635 kg

     Fill Station Module

    Dimension(LxWxH):737 x 940 x 1778 mm

    Weight:544~726 kg

    SCBA Cylinders:5000 psi (345 bar)、6000 psi (414 bar)

    Number of Stages:3、4



    Standards compliant

    NFPA 1901

    NFPA 1989

    Technical Data
    Model Charging Rate Number of Stages Motor FAD² RPM Purification System
      SCFM l/min   HP kW
    6000 PSIG (414 BAR)
    VT-P/5-E1/E3 5 142 3 5 3.7 4 1050 P2 B-SECURUS
    VT-P/8-E1/E3 8.4 238 3 7.5 5.6 7 1250 P2 B-SECURUS
    VAC10-E1/E3 9.7 275 4 7.5 5.6 8.1 1180 P2 B-SECURUS
    VAC13-E1/E3 13 368 4 10 7.5 10.8 1420 P2 B-SECURUS

    *E1= Single phase electric, 230 VAC/60 Hz
    *E3=Three phase electric, 208/230/460 VAC/60 Hz
      Other voltages are available on request

  • BAUER VERTICUS PLUS™ presentation
