Confined Space UCT Tripod System
ID：3M DBI-SALA 8301079/8301081/8301083/8301084/8301085/8301073/8301077

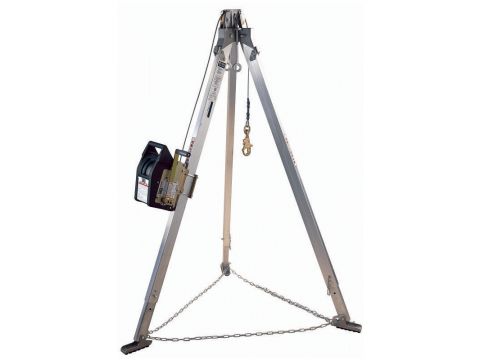

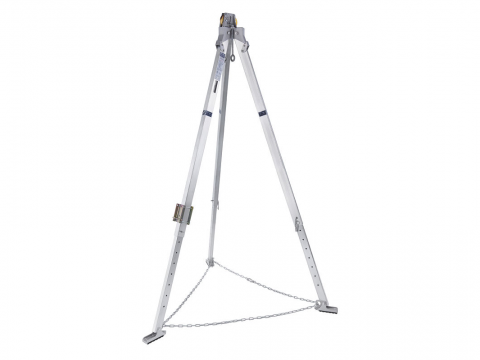

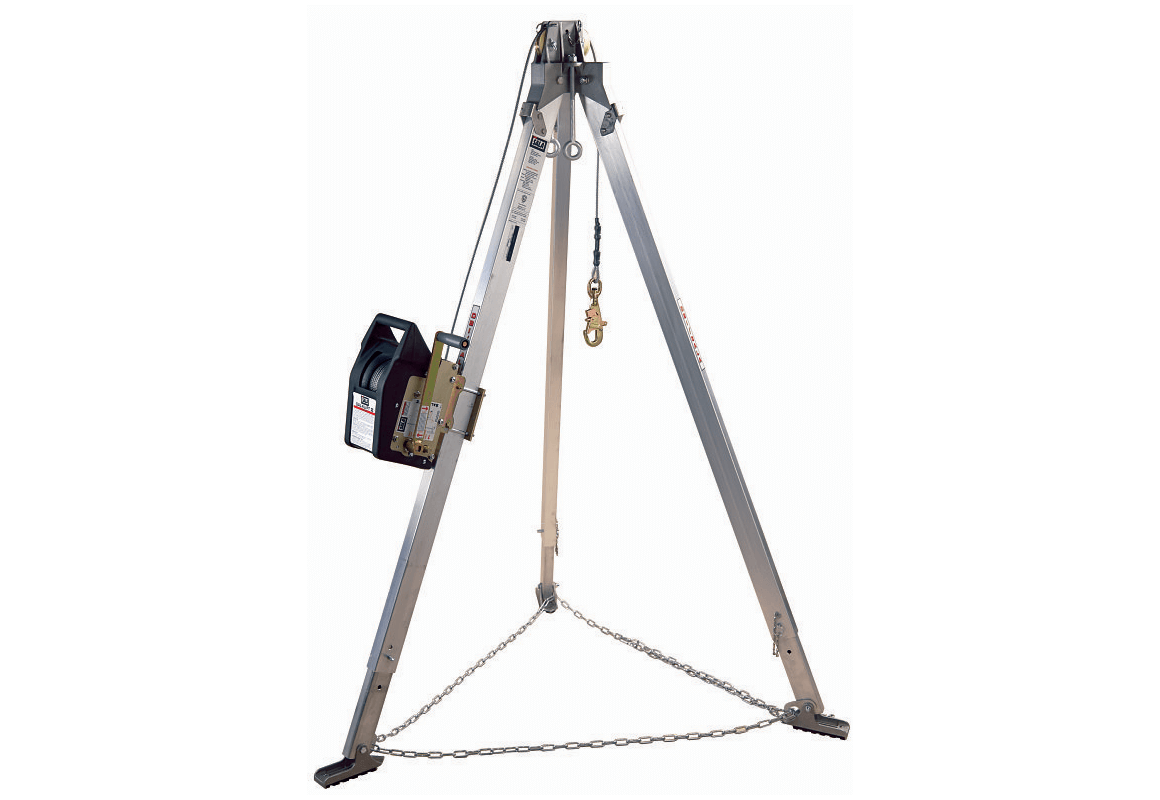

3M™ DBI-SALA® Aluminum Tripods can be set up by one worker and are portable for transporting from one location to another. They can accommodate a variety of winches and fall arrest devices and feature locking legs, detent pin style adjustment, quick-mount mechanical device bracket, safety chain and padded feet to minimize movement.
-

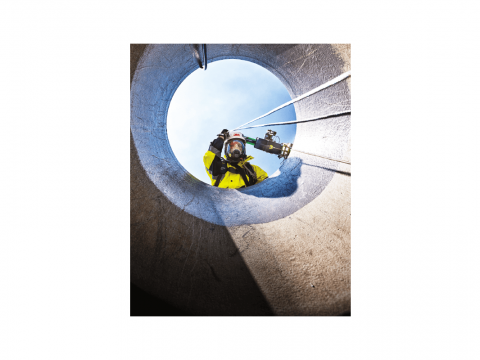

3M™ DBI-SALA® mechanical systems can serve as one of the most critical parts of a rescue plan, providing the means to retrieve an incapacitated worker to safety. Lifeline type and length are just a few of the options.

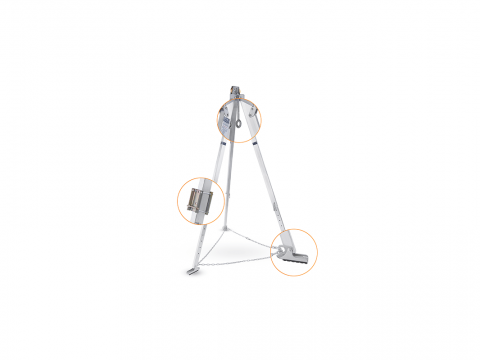

- Telescoping adjustable locking legs
- Built-in pulley system
- Padded shoes and leg support chain

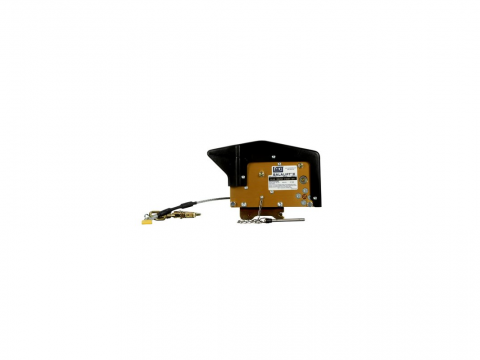

- Manually operated winch
- 6:1 gear ratio mechanical advantage winch
- Free-wheel mode available on winch
- 3-way emergency retrieval system
- Leg mount pulley system for secondary mechanical device (model 8003238)
- Quick connect winch and SRL mounting brackets (model 8005048)
- Equipped with pre-programmed RFID
-
Assembling the 3M™ DBI-SALA® Aluminum Tripod
-
