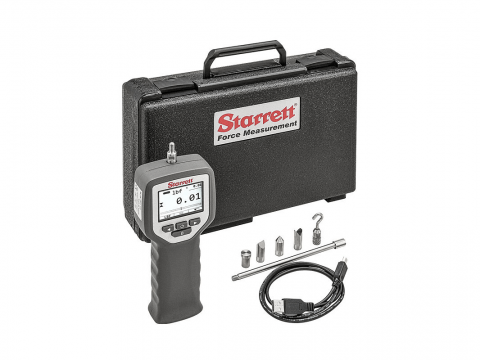

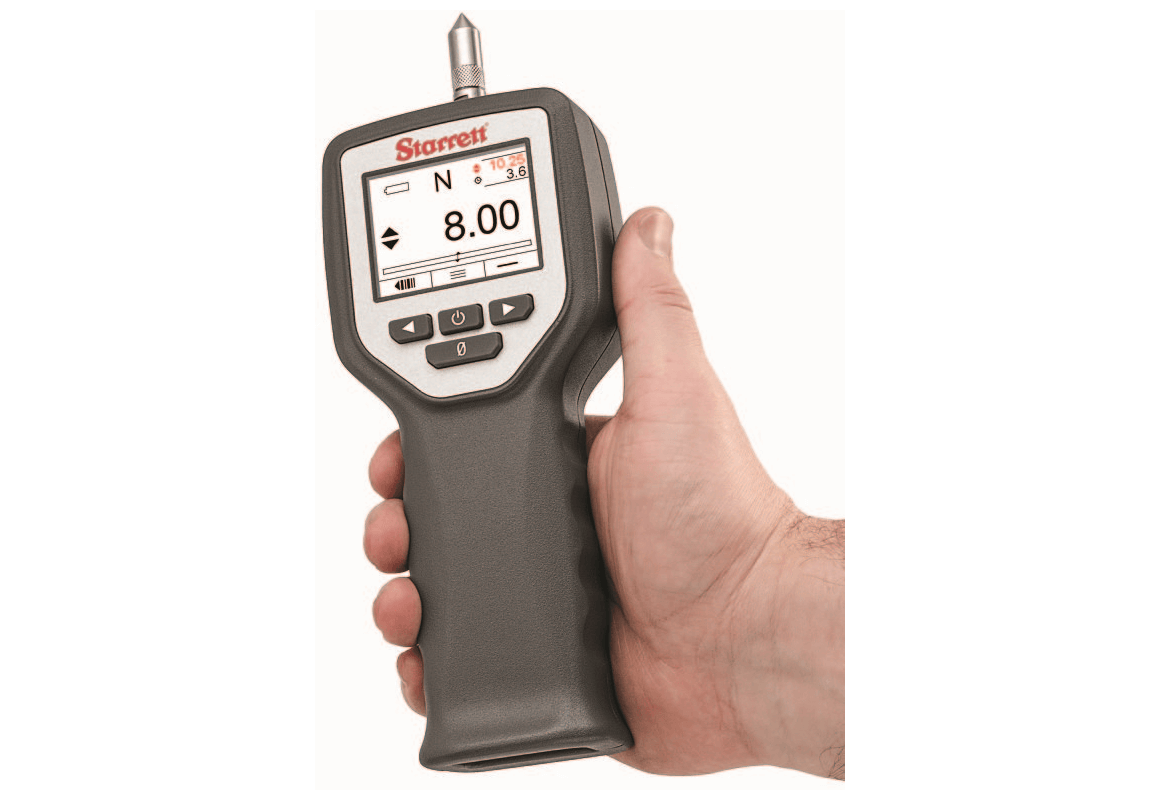

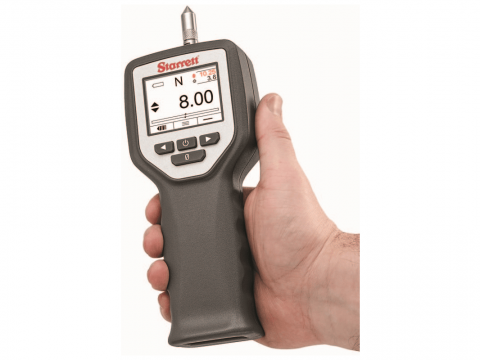

DFG Basic Digital Force Gages
ID：DFG
The DFG is a basic force gage that measures force at an accuracy of better than 0.2% full scale. The DFG is ideal for basic tensile and compression testing. Test setup and operation is fast, efficient and easy for anyone. The DFG display shows the test direction and dynamic load during testing. Results are displayed at the completion of testing, including "Pass-Fail" when tolerance is applied. The gage will display statistics when results are saved to the gage's internal memory. Store up to 50 test results in local memory.
-
- Better than 0.2% Accuracy
- Six Capacities in DFG Series (10, 20, 50, 100, 200 and 500lbf)
- Display load in lbf, N, kgf, ozf and gf units

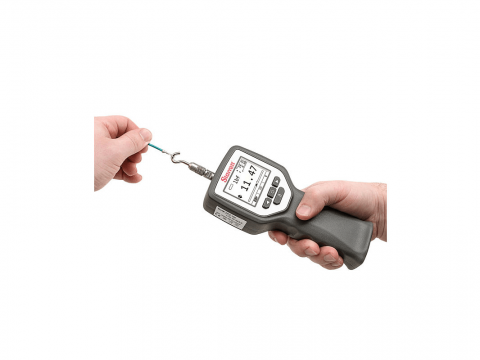

- Tension or Compression
- Save Results to Memory for Statistical Calculations, or Export to your PC for Detailed Analysis
- Measure Peak Loads Quickly
- Use Tolerances for Pass-Fail Analysis
- USB and RS232 Communications
- 10,000 Hz Data Sampling Rate
NOTES：Load measurement accuracy is ±0.2% of load cell capacity. Display resolution is 5,000:1.Model No. N KGF LBF OZF GF Safe Overload
% Full ScaleFull Scale Deflection Thread (mm) DFG-10 50 5 10 160 5000 200 0.15 mm M6 x 1-6H DFG-20 100 10 20 320 10,000 200 0.2 mm M6 x 1-6H DFG-50 250 25 50 800 25,000 200 0.39 mm M6 x 1-6H DFG-100 500 50 110 1600 50,000 200 0.6 mm M6 x 1-6H DFG-200 1000 100 225 - - 200 0.54 mm M6 x 1-6H DFG-500 2500 250 550 - - 200 0.7 mm M10 x 1.5-5H
-
