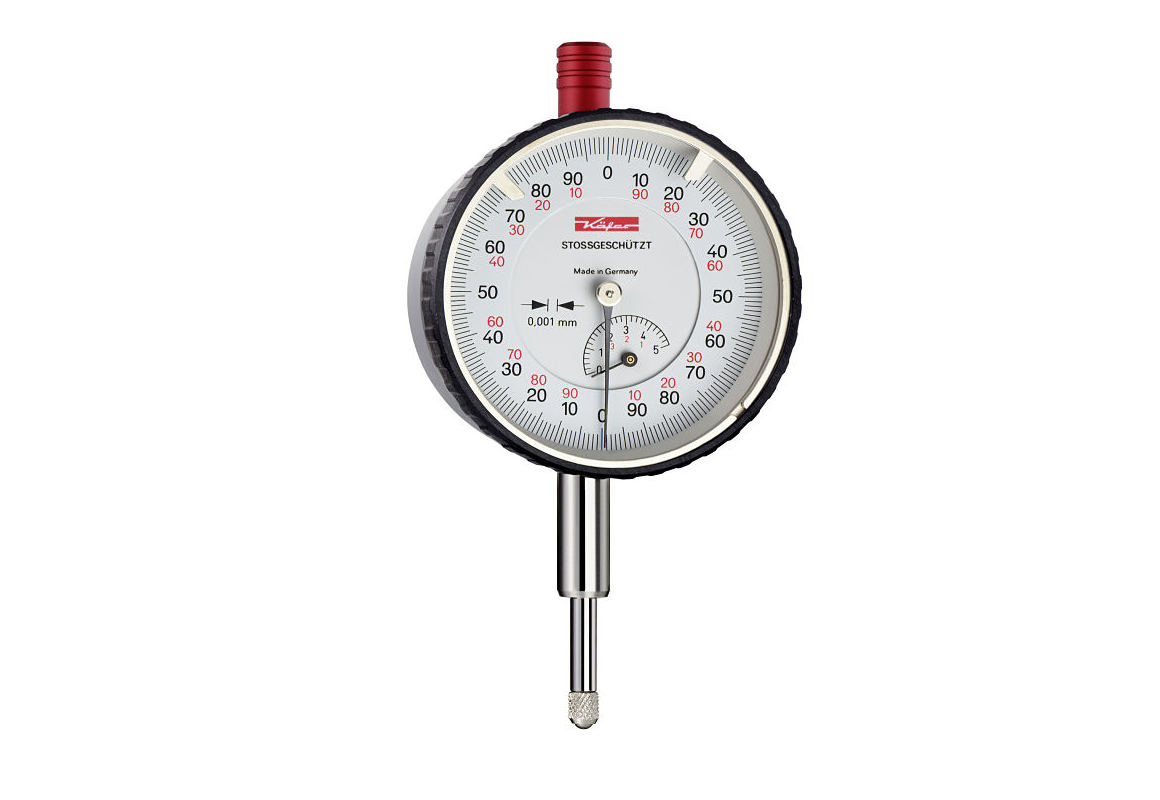

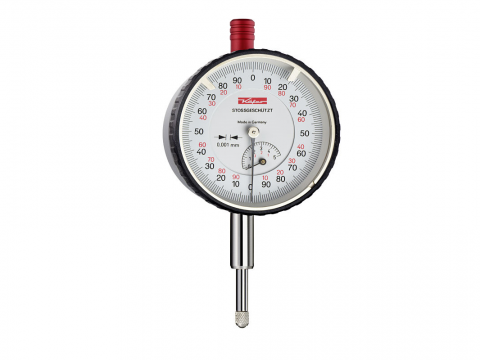

Dial Gauge FM 1000/5 S
ID：FM 1000/5 S
Except for the longer measuring range and the bezel diameter of 58 mm all technical features of Dial Gauge FM 1000/5 S are the same as for model KM 1000 S. Spindle and stem are made of resistant stainless steel. The spindle is lapped.
-
- Reading: 0.001 mm
- Range: 5 mm
- Range per revolution: 0.2 mm
- Bezel-Ø: 58 mm
- Stem-Ø: 8 h 6
- Dimensions and accuracy according to DIN EN ISO 463/ manufacturing standard 0.0500.9.0001
