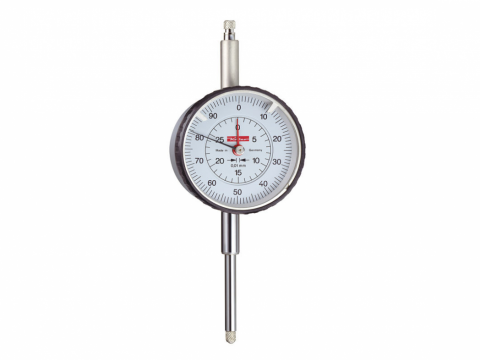

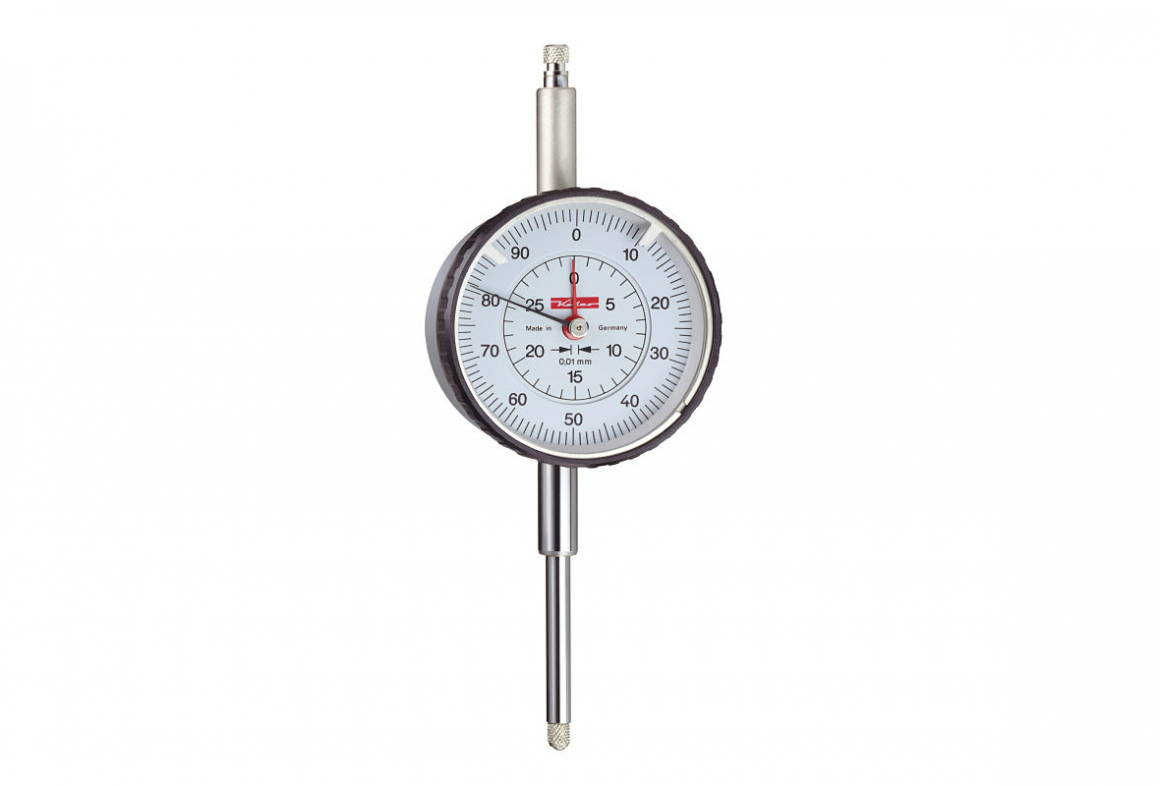

Dial Gauge M 2/30 T

ID:M 2/30 T
The concentric millimetre pointer allows easy and safe reading of this Dial Gauge. The carefully thought-out design, the use of selected components and materials as well as the movement perfected by precision engineering guarantee reliable measuring results and a long service life of the Precision Dial Gauge M 2/30 T. The essential parts of the movement are jewelled. Spindle and stem are made of resistant stainless steel.
    • Reading: 0.01 mm
    • Range: 30 mm
    • Range per revolution: 1 mm
    • Bezel-Ø: 58 mm
    • Stem-Ø: 8 h 6
    • Dimensions and accuracy according to DIN EN ISO 463 /manufacturing standard 1.0200.9.0014
