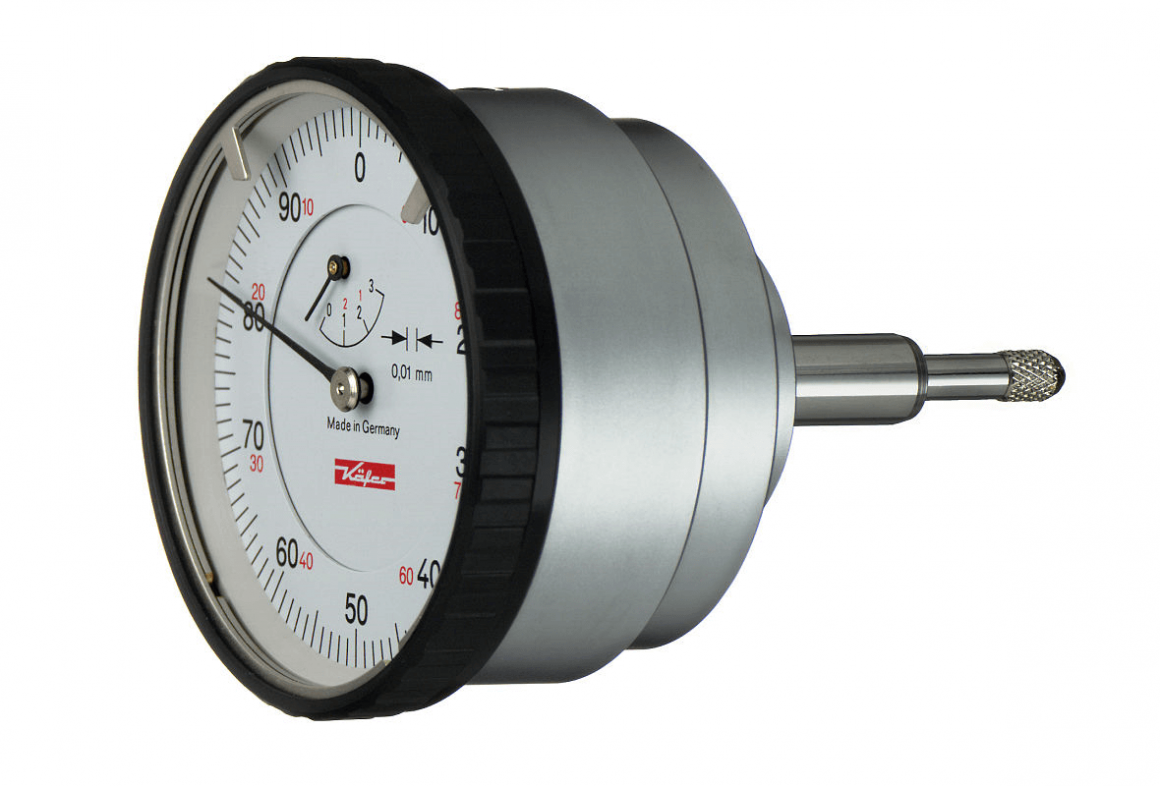

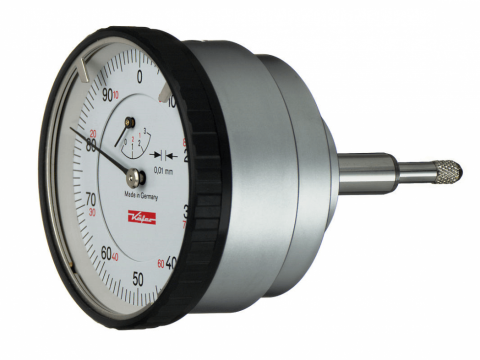

Dial Gauge M 2 R
ID：M 2 R
The models M 2 R and M 2/5 R differ only in their measuring ranges. Both Dial Gauges can be held either on the standard 8 mm h 6 stem or on the 28 mm diameter spigot. Spindle and stem are made of resistant stainless steel. The spindle is lapped.
-
- Reading: 0.01 mm
- Range: 3 mm
- Range per revolution: 1 mm
- Bezel-Ø: 58 mm
- Stem-Ø: 8 h 6
- Dimensions and accuracy according to DIN EN ISO 463 / manufacturing standard 0.0500.9.0006
