e-computest Portable Hardness Tester

ID：e-computest
Discover the revolutionary Rockwell portable hardness tester, an essential tool for precision metal quality control. Designed for versatility and ease of use, this advanced, miniaturized device is ideal for direct on-site measurements of any-sized parts, supporting a broad range of industrial applications. With its outstanding portability and adaptive features, the hardness tester enhances operational efficiency and accuracy right where it's needed.
Features Video
  • Product Advantages

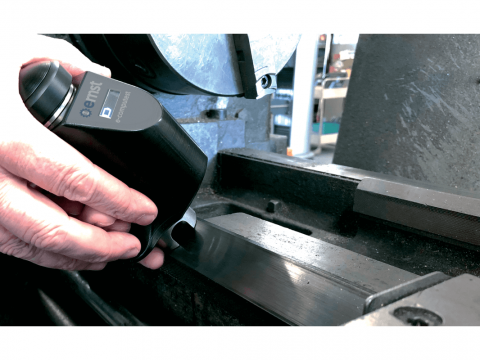

    • Portable miniaturised Rockwell hardness tester - On-site measurement of pieces of any size
    • Adjustable in all directions - Savings on handling and cutting costs
    • 1 diamond indenter for the entire range of metals - Speed and simplicity of the testing process
    • Testing is not affected by any yielding or bending - Reliable results in all test conditions
    • ACCREDIA certification (ILAC MRA-Mutual Recognition Arrangements) - Offers a competitive advantage in markets where certification is required

    Technical Details
    Power supply 100 - 240 Volt
    Loads 5 kgf (49 N)
    Norms and certifications DIN 50157 ASTM E-18 indirect method on certified test block ISO 6506 indirect method on certified test block ISO 6507 indirect method on certified test block ISO 6508 indirect method on certified test block ACCREDIA CERTIFICATE on request
    Minimum measurable diameter 2 mm with stand 12 mm with base for rounds
    Selectable functions Scales, tollerances, calibration, test load, stats, language, sequence, files, materials, partial average, clock, auto off timer, add notes, barcode scanner, geo-localization
    Output interfaces Wifi, Bluetooth, micro USB, micro SD slot
    Reading Tablet display touch-screen 6"
    Languages Italian, English, German, Other languages on request
    Load application method manual
    Weight Mechanical unit 750 g Electronical unit 360 g
    Preload 1,2 kgf (11.8 N)
    Accuracy HRC 0,3 HB < 1%
    Working principle Rockwell
    Standard scales HRC (0-70) - HV (35-1080) - HB30 (80-700) - HB/5 (21-190) - DPTH (0-100)
    Load time selectable 1 - 60 sec

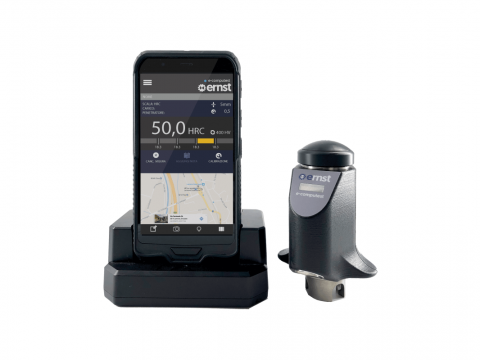

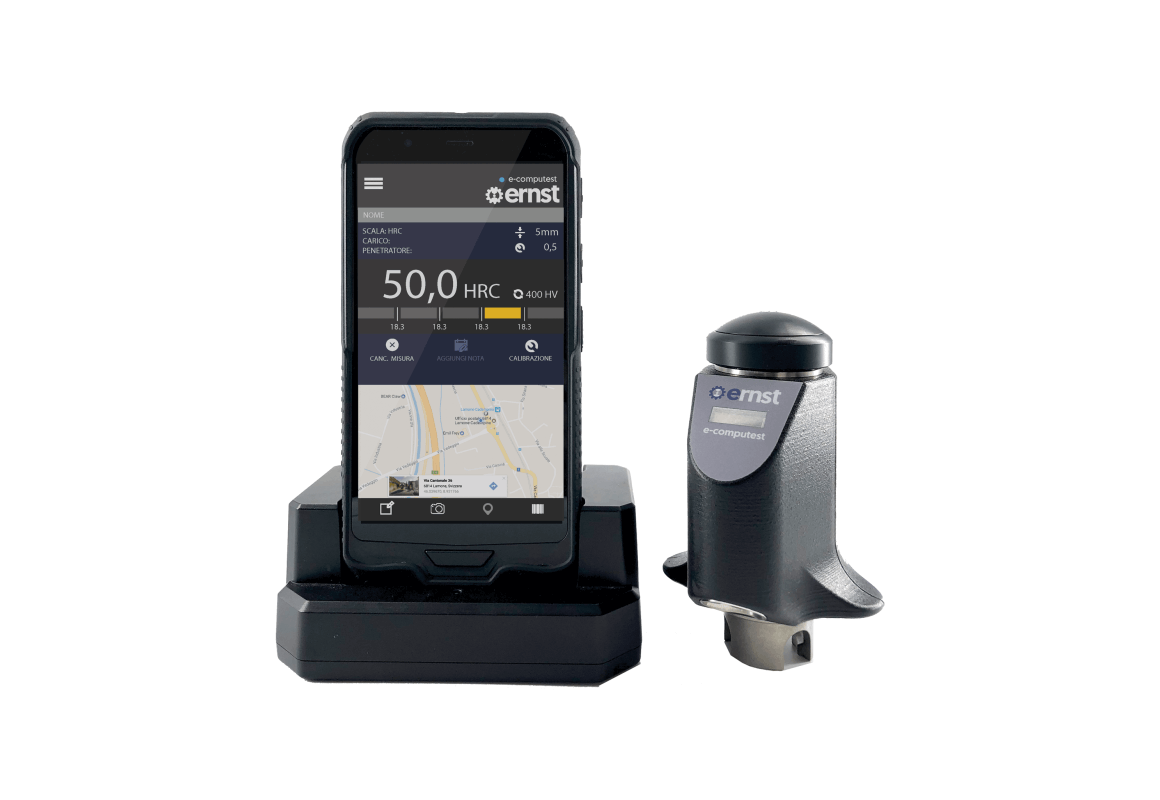

  • Wireless portable hardness tester Ernst e-computest


    cisam-ernst portable hardness tester e-computest
