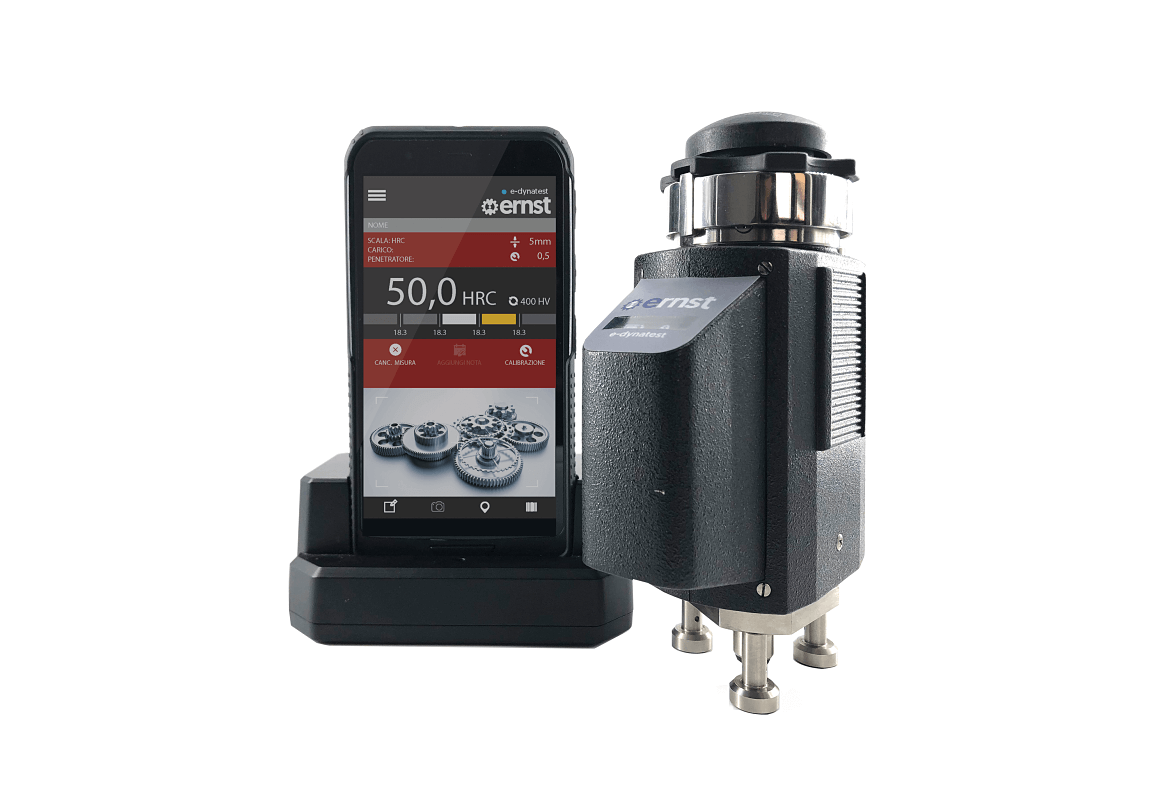

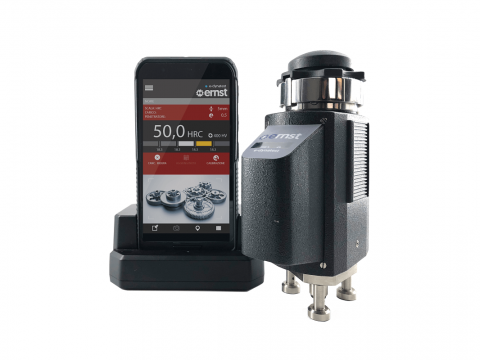

e-dynatest Portable Hardness Tester

ID:e-dynatest

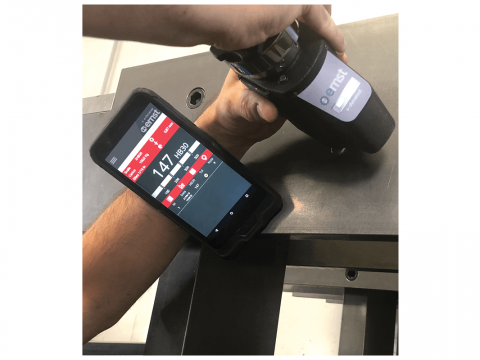

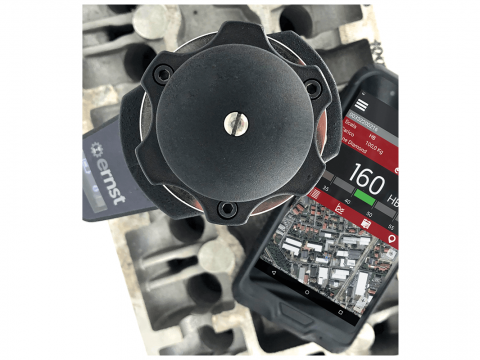

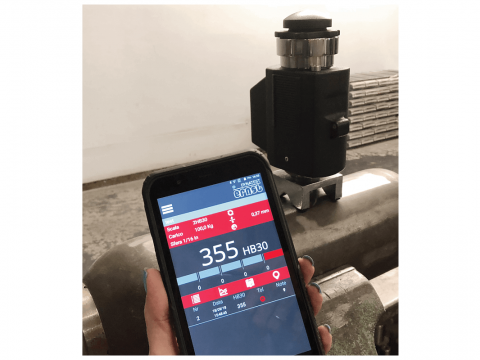

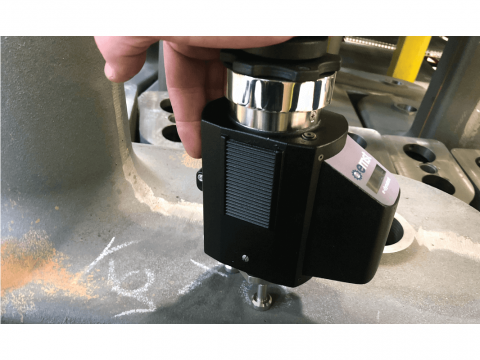

The e-dynatest stands out for its high test load of 100 kgf (980 N), making it a powerful tool for precise hardness measurements. This high test load ensures reliable and consistent measurements, as the testing process is unaffected by the surface condition of the material. It is particularly ideal for testing large pieces that are difficult to move, as it can be used directly on-site. Combined with the wireless data transfer between the test head and the tablet, the e-dynatest allows for quick, precise, and straightforward hardness testing, with results displayed directly on the 6-inch tablet display. The wireless connection ensures that data is captured without delay and can be evaluated in real-time. The Android app allows test results to be not only stored but also efficiently managed, shared, and printed. The combination of high test load, precision, and user-friendliness makes the e-dynatest an excellent choice for on-site hardness testing.
  • Product Advantages
    • Portable miniaturised Rockwell hardness tester - On-site measurement of pieces of any size
    • Adjustable in all directions - Savings on handling and cutting costs
    • High test load (100 kgf) - Two tools in one: measurements are comparable to a bench-top hardness tester
    • Measurement via a single manual pressure - Speed and simplicity of the measurement processes
    • ACCREDIA certification (ILAC MRA-Mutual Recognition Arrangements) - Offers a competitive advantage in markets where certification is required

    Technical Details
    Power supply 100 - 240 Volt
    Loads 100 kgf (980 N)
    Norms and certifications DIN 50157 ASTM E-18 indirect method on certified test block ISO 6506 indirect method on certified test block ISO 6507 indirect method on certified test block ISO 6508 indirect method on certified test block ACCREDIA CERTIFICATE on request
    Minimum measurable diameter 25 mm standard 12 mm with special penetrator shroud
    Selectable functions Scales, tollerances, calibration, test load, stats, language, sequence, files, materials, partial average, clock, auto off timer, add notes, barcode scanner, geo-localization
    Output interfaces Wifi, Bluetooth, micro USB, micro SD slot
    Reading Tablet display touch-screen 6"
    Languages Italian, English, German, Other languages on request
    Load application method manual
    Weight Mechanical unit 2050g Electronic unit 360g
    Preload 3,45 kgf (33.8 N)
    Accuracy HRC 0,3 HB < 1%
    Working principle Rockwell
    Standard scales HRC (10-70) - 1HB30 (160-700) - 2HB30 (100-500)
  • Wireless portable hardness tester Ernst e-dynatest


    e-dynatest portable Rockwell hardness tester
