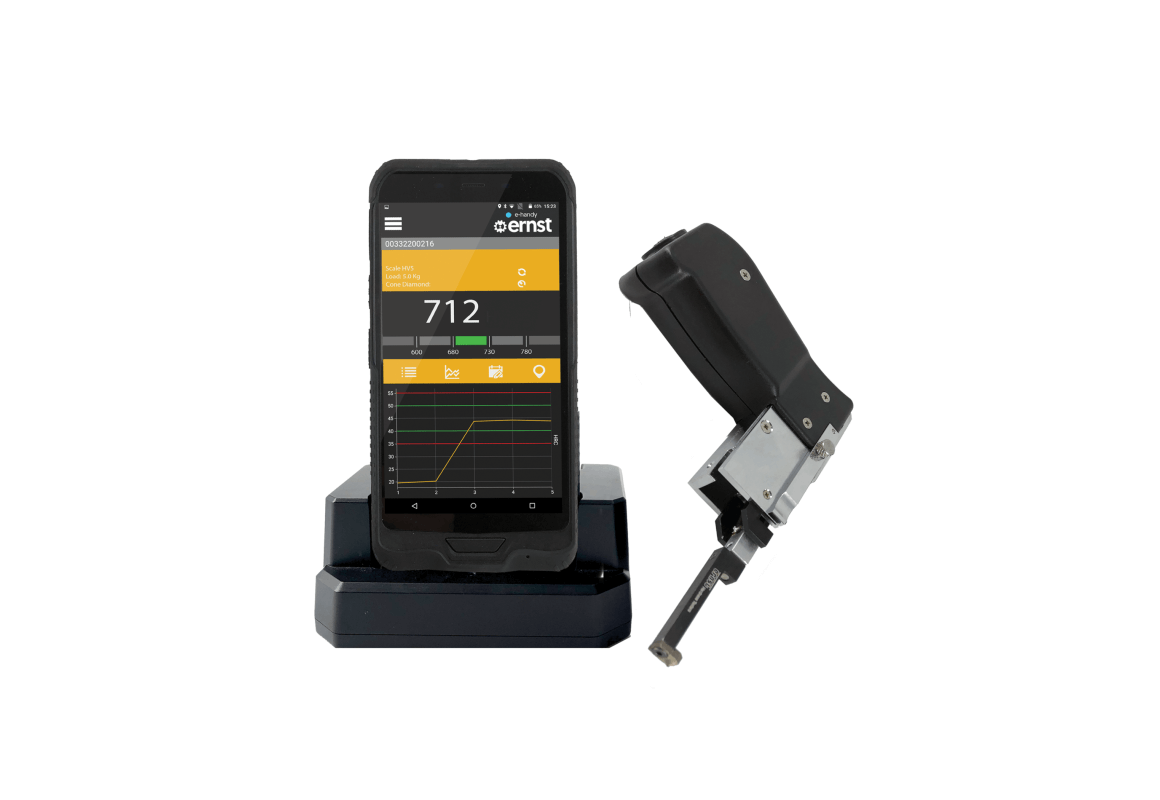

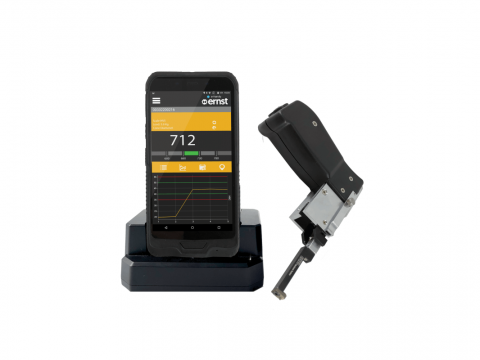

e-handy Portable Hardness Tester

ID：e-handy
The e-handy portable hardness tester is the ideal solution for those seeking precision and reliability in hardness measurements. Based on the patented ESATEST® principle by ERNST, e-handy uses an innovative testing method that leverages the correlation between penetration depth and residual electrical resistance. This advanced method generates a precise measurement curve as the applied load varies, allowing the hardness tester to accurately determine hardness by comparing the curve with a previously acquired calibration.
Features Video
  • Product Advantages

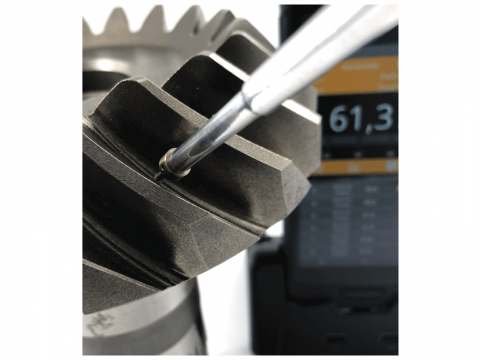

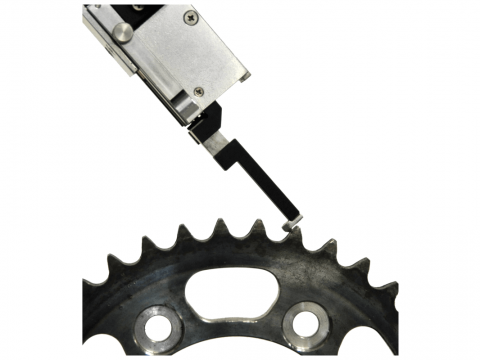

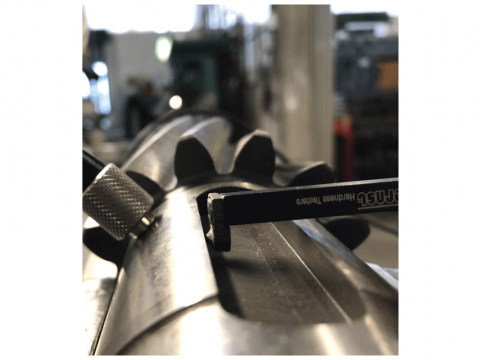

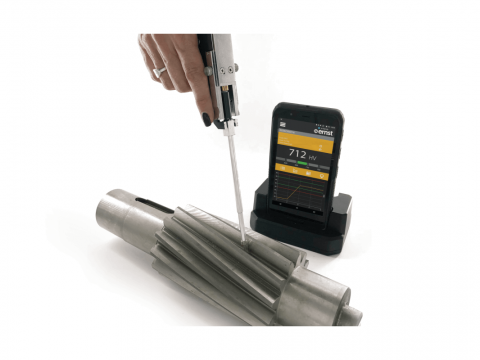

    • Principle based on  the measurement of electrical resistance - Tests in points inaccessible to traditional hardness testers:  gears, couplings, cavities, interiors, weld seams, HAZ (Heat Affected Zone)
    • 1 diamond indenter  for the entire range of metals - Simplicity and speed of the testing process
    • Continuous measurement of hardness at various loads - Immediate evaluation of the surface heat treatment - A single tool -->  Various detections
    • ACCREDIA certification (ILAC MRA-Mutual Recognition Arrangements) - Offers a competitive  advantage in markets where certification is required

    Technical Details
    Power supply 100 -240 volt
    Loads Real time continuous progressive application with acquisition of load values and electrical resistance from 1kgf to 10kgf (9.81N to 98.1N)
    Norms and certifications DIN 50158 Esatest principle
ASTM E-18 indirect method on certified test block
ISO 6507 indirect method on certified test block
ISO 6508 indirect method on certified test block
ISO 6506 indirect method on certified test block ACCREDIA CERTIFICATE on request
    Minimum measurable diameter < 5 mm - it is possible to execute tests in small cavities with the use of special penetrators
    Output interfaces tablet with micro USB - micro TF slot - WiFi - Bluetooth - gps
    Reading tablet display touch-screen 5.9"
    Languages Italian, English, German, Other languages on request
    Load application method manual
    Weight Mechanical unit 670g Electronic unit 380g
    Working principle ESATEST® Pat ERNST - by means of electrical resistance
    Standard scales DRE - HB10 - HB30 - HB5 - HRA - HRB - HRC - HRF - HV - N/mm²
    Working area dimensions 2mm x 2mm
    Memory 16GB
  • e-handy ernst wireless metal hardness tester
