Formline F900 Measuring Systems

ID:F900

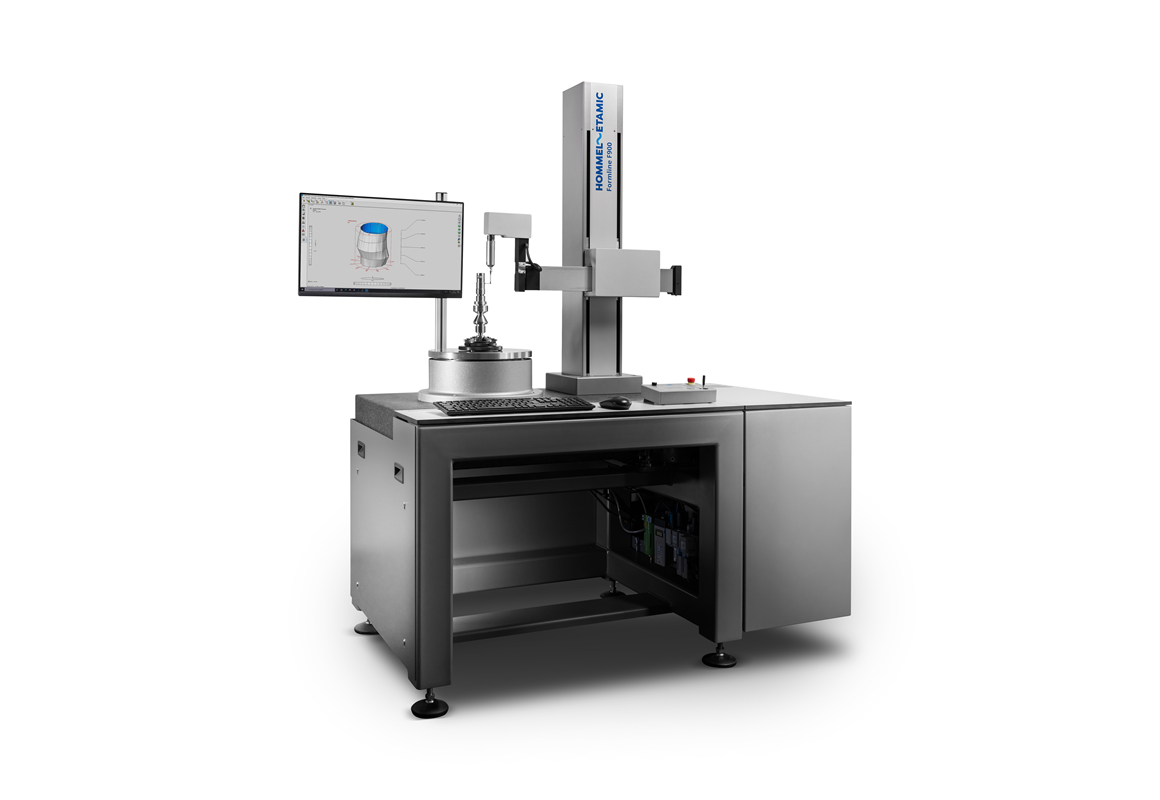

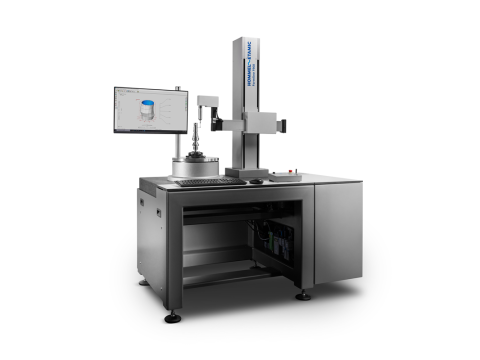

The Formline F900 measuring systems combine form and roughness measurement in a single measurement sequence. With one probing system, you can measure form, roughness and twist of the part. The probing force can be set automatically and measuring position-individually via software. Both small and very large workpieces can be measured fully automatically. This system convinces with a short time requirement for alignment and the measurement cycle. The possibility of fully automatic measuring runs saves additional time and thus resources. The Formline F900 measuring system has a compact instrument table with integrated vibration isolators and storage space for computers and system electronics.
  • System features
    • Highly accurate air bearing rotary table with outstanding rigidity for consistently high precision
    • High resolution with 0.1 μm in the R/Z axis and 360,000 points in the C axis
    • Integrated linear scale and active level control
    • CNC controlled motorized tilt and rotation module for fully automatic measurements

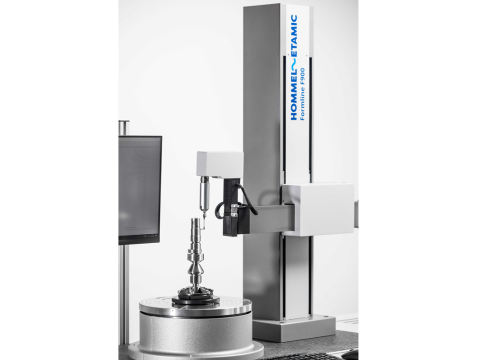

    • Double-tipped probe system can be switched from form to roughness during the CNC run
    • For roughness measurement, the probing force can be programmed in any position of the probe arm in accordance with standards
      with high resolution and very low interference
    • Automatic zenith alignment of the probe arm through 3-ball system

    Highlights
    • Time saving thanks to very fast, fully automatic centering and leveling and CNC controlled measuring axes
    • Flexible use with free probe system in C, Z and R direction for form, roughness, waviness and twist measurement in a single clamping operation
    • Heights of vertical measuring axis: 350, 550 or 900 mm
    • Vibration-damped instrument table with container for PC and system electronics
    • Magnetic probe arm coupling for fast changing of the probe arm and protection in case of collisions
    • Flexible access to external/internal measurement positions:
          + fully automatic probe positioning by CNC controlled tilt and rotation module
          + fully automatic, freely adjustable probe force and reversible scanning direction
