FMM Digital Force Testers

ID：FMM

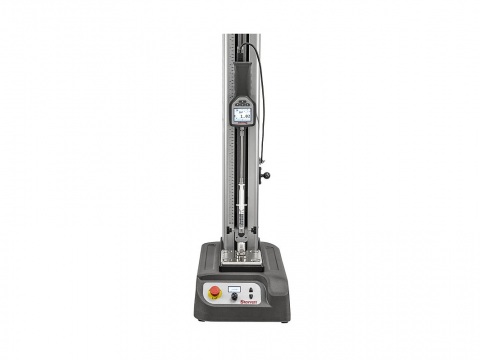

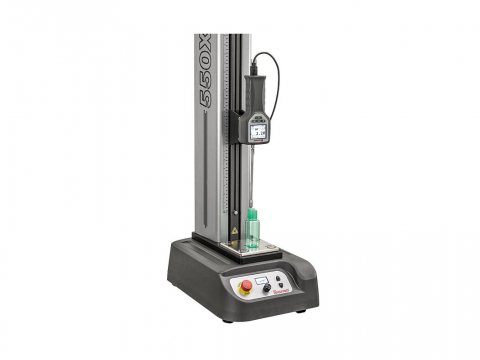

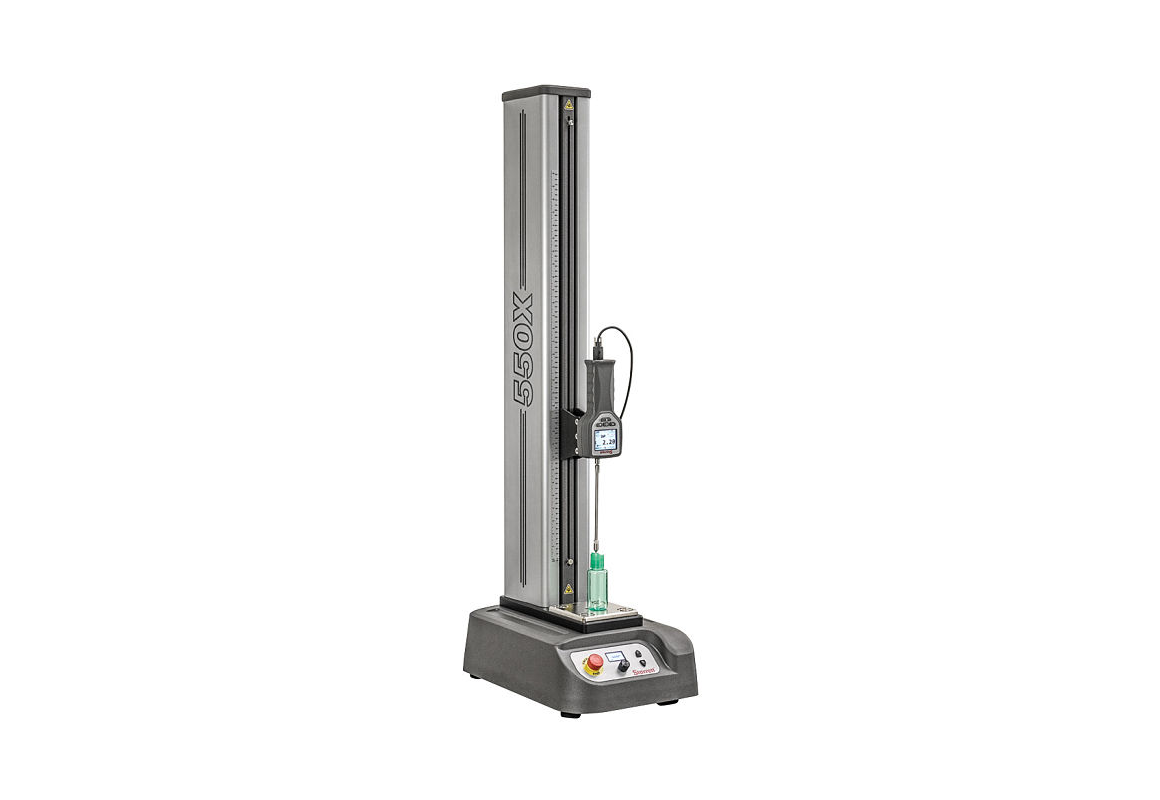

FMM digital force testers are compact and ideal for high volume, lean manufacturing production. FMM Digital Force Testers may be used manually, with a DFG or DFC digital force gage, or any of the Lx software versions, L1, L2Plus and L3. FMM testers are available in three capacities: 110lbf (500N), 330lbf (1500N) and 550lbf (2500N). Two travel lengths are available for all capacities: standard travel at 20" (508mm) and extended travel at 30" (762mm). Crosshead speeds are controlled locally and can be set from 0.002 to 40 inch/min (0.05 to 1016mm/min). Quiet even when operating at full speed. Easily upgrade from force gage control to computer based operating using Lx software.

Features Video

Ideal for tension, compression, flexural, cyclic, shear, and friction applications
Use with L1 software and 2-in-1 tablet PC or with DFC and DFG force gages
Multiple, Easy-to-Use Operating Modes; manual, automatic, continuous, gage control, or software control
Easily perform load, distance, beak, cyclic, constant load and distance testing
Reference distance travel ruler
Compact design is ideal for small work space and for lean manufacturing environments
Adjustable, magnetic travel limits
Speed selection dial with high resolution display
Conforms to All Relevant European Standards and Carries CE Mark

Model No.		Short Travel			Standard Travel			Extended Travel
Model No.		FMM-110S	FMM-330S	FMM-550S	FMM-110	FMM-330	FMM-550	FMM-110X	FMM-330X	FMM-550X
Load Capacity, Full Scale	N	500	1500	2500	500	1500	2500	500	1500	2500
	KGF	50	150	250	50	150	250	50	150	250
	LBF	110	330	550	110	330	550	110	330	550
