FMS L2P(1)

FMS L2P Force Measurement System

ID：FMS L2P

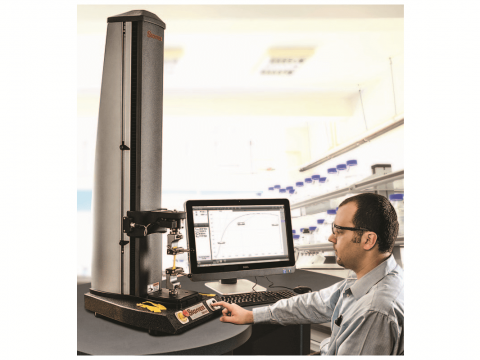

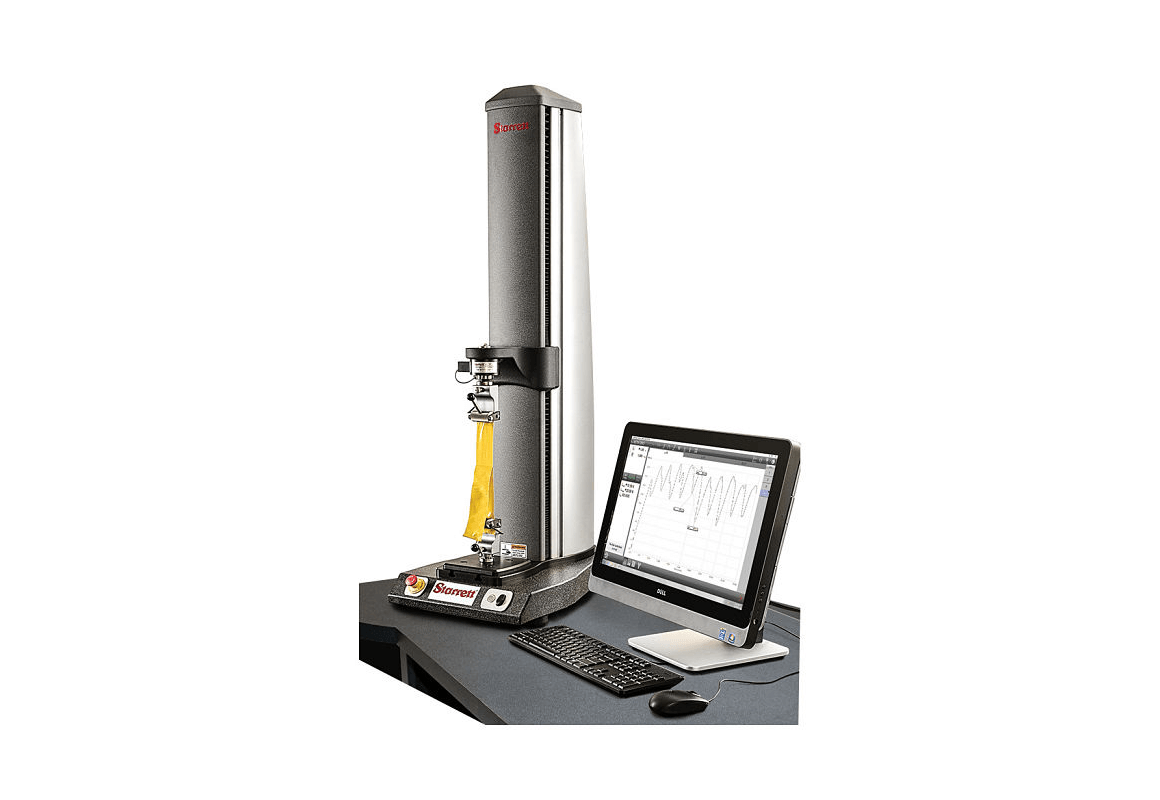

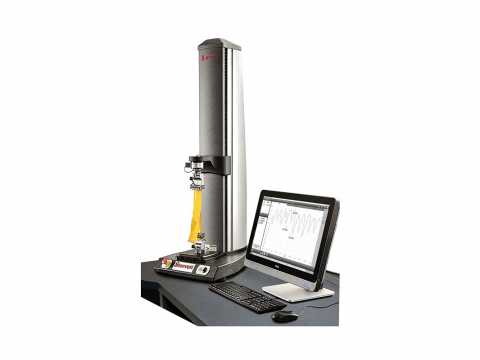

The Starrett FMS L2P Series is a single-column force measurement system optimized for high-volume production and quality control testing. The system includes the test frame, controller & software. The controller features a Windows operating system with high resolution color, multi-touch display, Wi-Fi, Bluetooth and USB 2.0 port(s). The L2 Plus software features analysis tools to measure and display results on a single graph. Once this is complete, those results are automatically measured and placed on all of the test runs within your batch. Display full graphs, split graphs with data tables or as a data table complete with statistical calculations or tolerance .
Features Video
    • Turnkey 1000N (225lbf), 2500N (562lbf), 5000N (1124lbf) Force Measurement System includes Testing Frame, L2 Plus Controller with L2 Plus Force Measurement Software
    • Easily Perform Tension, Compression, Flexural, Shear, Peel and COF Testing
    • Perform Complex Multi-stage Testing Using Advanced Test Builder Application
    • Compact Footprint (31"W x 29"D)
    • Use the Analysis Tools to Measure and Display Results on a Single Graph

    Model No. FMS-1000 FMS-2500 FMS-5000
    Load Capacity, Full Scale N 1000 2500 5000
    KGF 100 250 500
    LBF 225 562 1124
  • Starrett Force Measurement Systems - L2 PLUS Software
