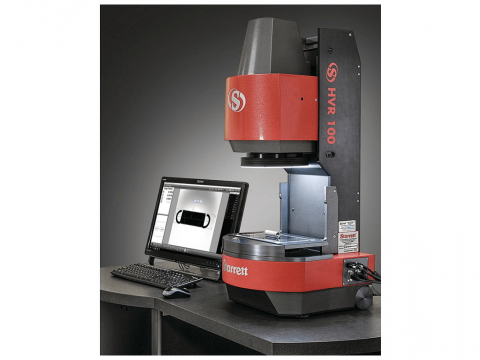

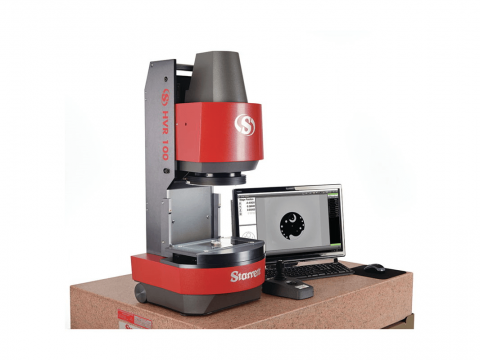

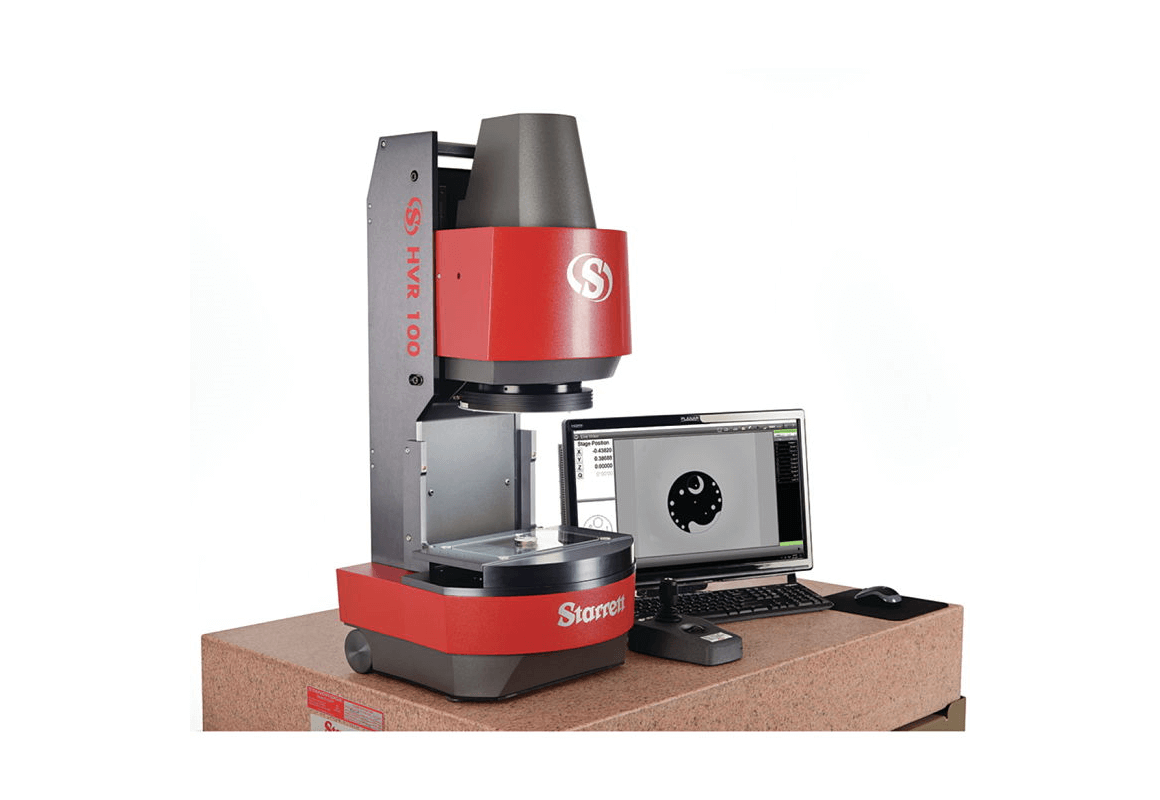

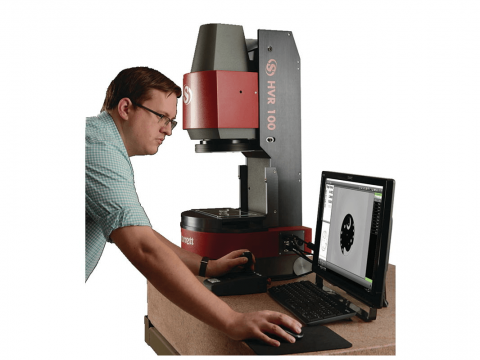

HVR100-FLIP Digital Video System

ID：HVR100-FLIP

The HVR-Flip from Starrett is the latest in a line of large field of view video-based measurement systems. The HVR-Flip has the unique characteristic of being used in either a vertical or horizontal format offering tremendous versatility and value.

Features Video

- Rapidly measure parts up to 3.65" x 3" (92.7mm x 76.2mm)
- Working distance of 10" (254mm)
- Measure a single feature, an entire part, or multiple parts
- MetLogix M3 software allows for easy one-touch feature measurement
- Auto-detect part recognition
- DXF Import - electronic overlay for quick part comparison
- Export features to DXF
- Compare complex profiles with discreet data points and comparison to CAD
- Graphic based "Part View" constructions
- Geometric tolerancing
- Flexible report content and formatting
- Multi-language support
- Optional software modules:
1. Profile fitting
2. Wire insulation
3. Thread measurement

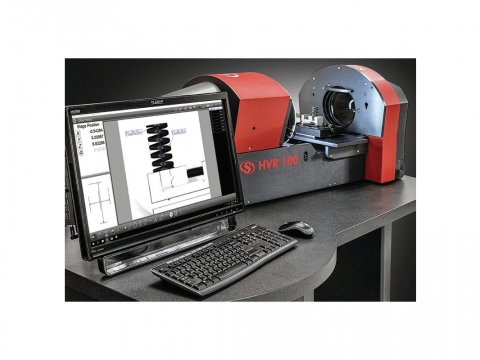

- System can be easily converted from a vertical format to a horizontal format measuring system
Starrett HVR100 Flip Digital Video System
