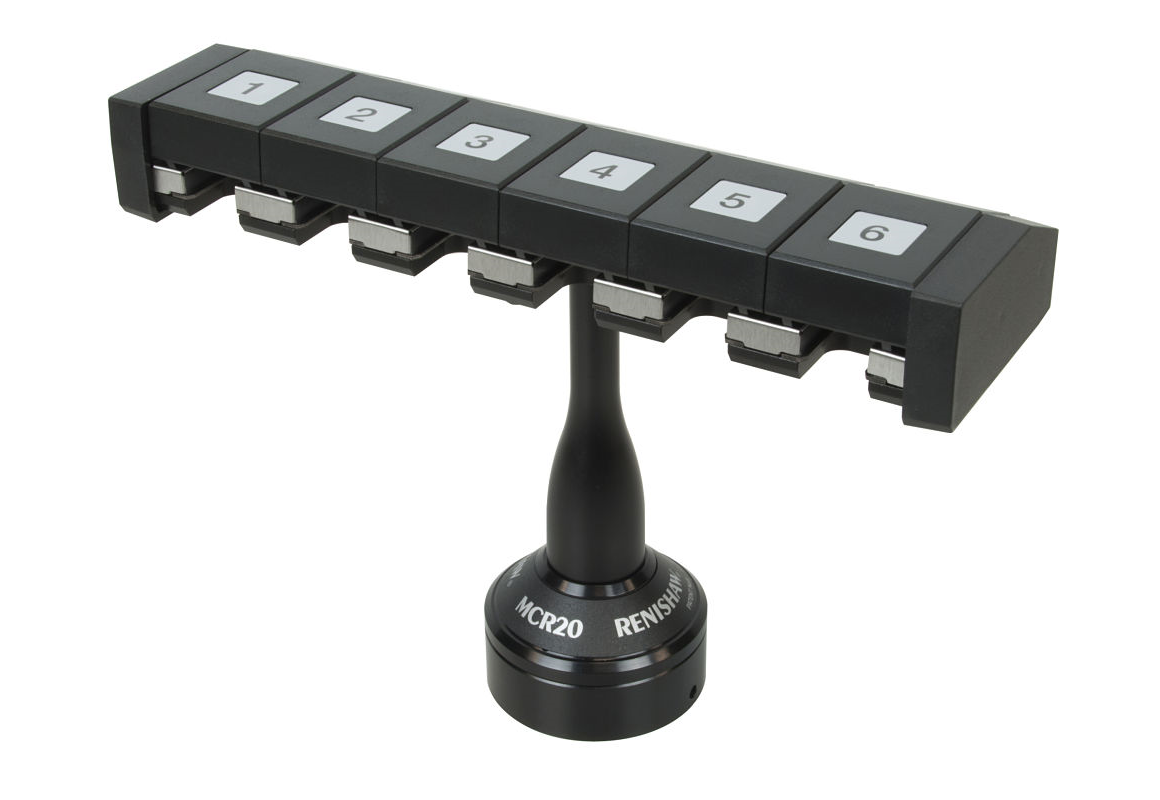

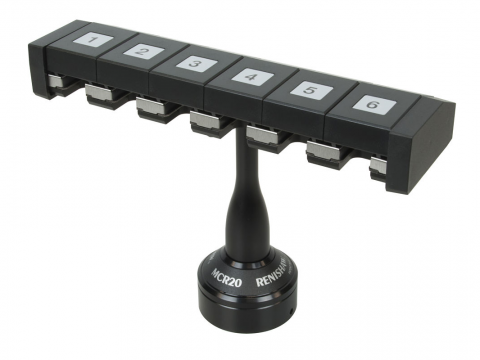

MCR20 Module Changing Rack
ID：MCR20

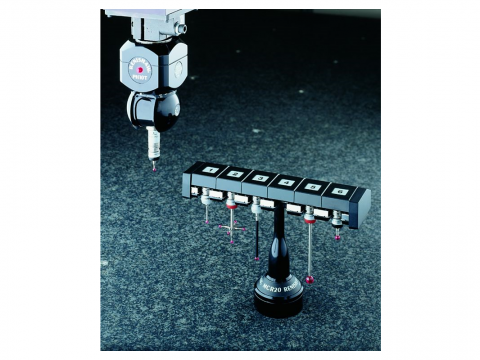

The MCR20 module changing rack is passive and can store up to six TP20 probe modules for automatic changing under measurement program control.
MCR20 is designed to securely hold the stored probe modules for automatic changing and to protect them from airborne contaminants.
-
- Secure storage of stylus modules for rapid automatic changing and optimum metrology
- Protects mating surfaces from airborne contaminants
- Used with TP20
- Passive rack requiring no electrical input
- Magnetic field in front of each port inhibits probe during module change
- Crash protection provided by hinged overtravel of base and docking port assembly
- Height: 145 mm (5.71 in)
- Depth: 60 mm (2.36 in)
- Width: 200 mm (7.87 in)
