Metlogix Software M1 & M2
ID：Metlogix M1&M2
Graphics rich display, large icon buttons, and intuitive operation. Coordinate display for X and Y linear axes and Q angular values for screen rotation. Easy part alignment and datum function.
-
- Clean and simple touchscreen interface with large icon buttons and intuitive operation.
- Graphics-rich display providing instant information on feature form, tolerances, and measurement data.
- Coordinate display for X and Y linear axes and Q angular values for screen rotation.
- Easy part alignment and datum functions.
- Measure and tolerance these geometric features: point, line, angle, distance, radius, diameter.
- As you measure, a part view is created in the feature view. Constructions between features such as distances and bolt hole pattern can been done by simple selections from the part view.
- For repetitive part measurement, create a part program that will visually guide operators through part measurement.
- Optional optical edge detection provides better throughput and removes operator subjectivity.
- Four different report forms can be printed or exported to Microsoft Excel, text files, or to an SPC program.

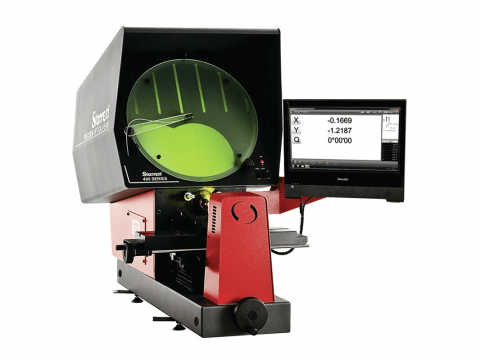

- M2 utilizes a Windows-based operating system enables flexible data export and interface capability.

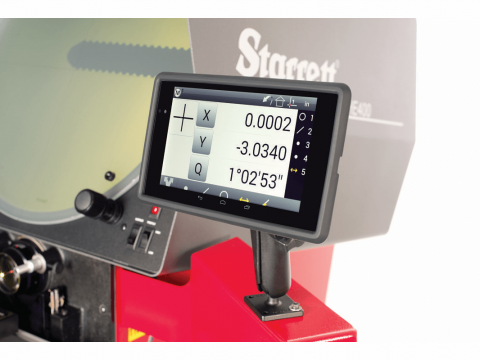

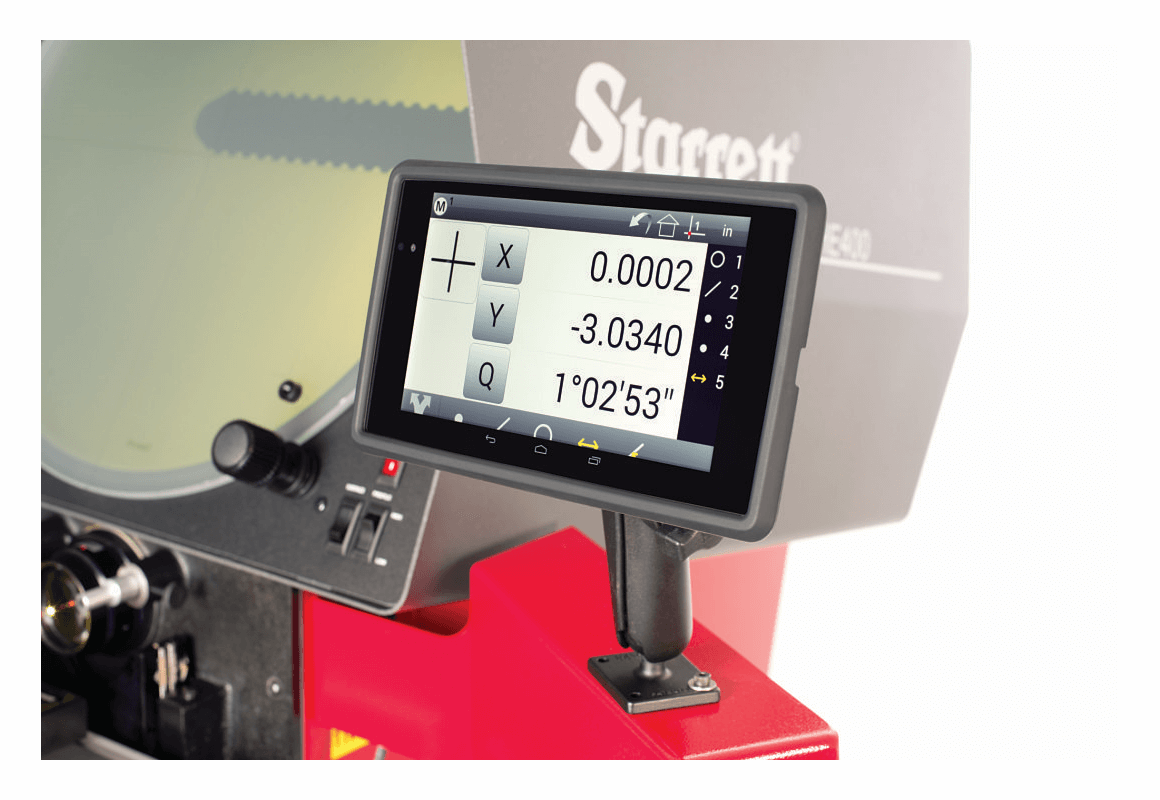

- M1 utilizes an Android operating system and a Bluetooth connection to the host Optical Comparator.
- Fast, easy connection to printers and networks.
-
