Metlogix Software Mx100 and Mx200
ID：Mx100/Mx200

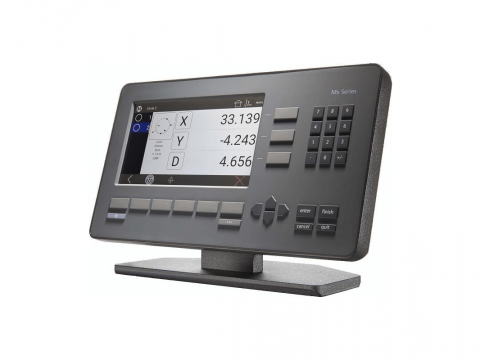

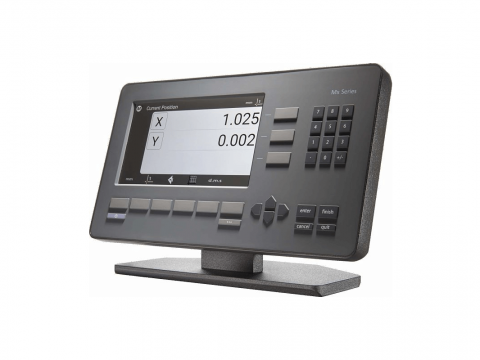

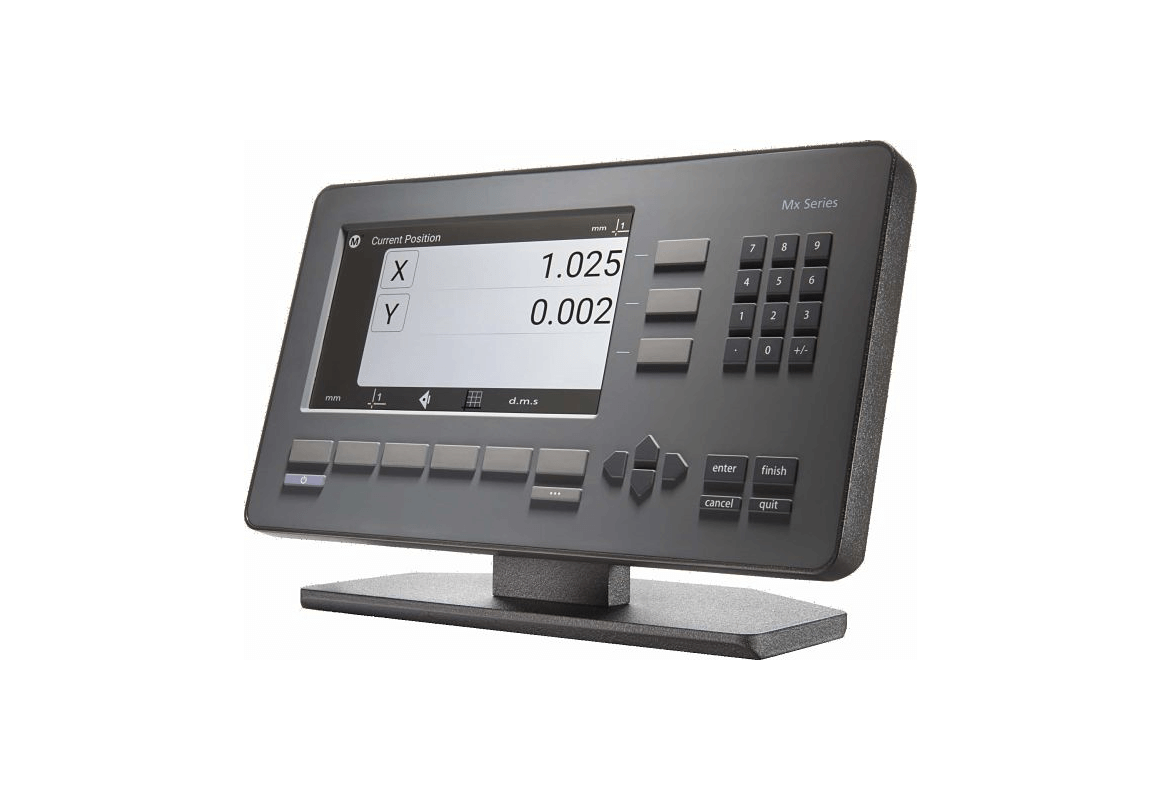

The Mx100 and Mx200 are shop-hardened digital readouts. A sealed rubber keypad and durable powder-coated enclosure provide lasting performance in any environment from the shop floor to the Quality Control Lab.
-
- Clean, simple and durable interface with large rubber buttons and intuitive operation.
- Graphics-rich display providing instant information on feature form, tolerances, and measurement data on 7" color screen.
- Coordinate display for X and Y linear axes and Q angular values for screen rotation
- Easy part alignment and datum functions.
- Measure and tolerance these geometric features: point, line, angle, distance, radius, diameter.
- As you measure, a part view is created in the feature view. Constructions between features such as distances and bolt hole pattern can been done by simple selections from the part view.
- For repetitive part measurement, create a part program that will visually guide operators through part measurement.
- Optical edge detection on Mx200 provides better throughput and removes operator subjectivity.
- Four different report forms can be printed or exported to Microsoft Excel, text files, or to an SPC program.
- Mx-Series utilizes a customized Android operating system.

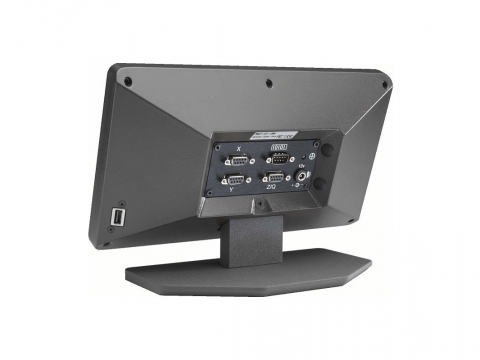

- Fast, easy connection to printers and networks.
- MxLink technology on the Mx200 model allows users to transfer measurement data instantly and wirelessly to a network Windows computer.
-
