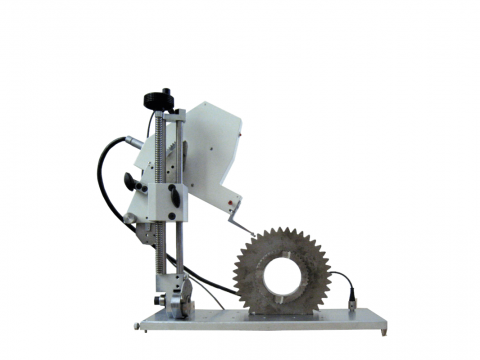

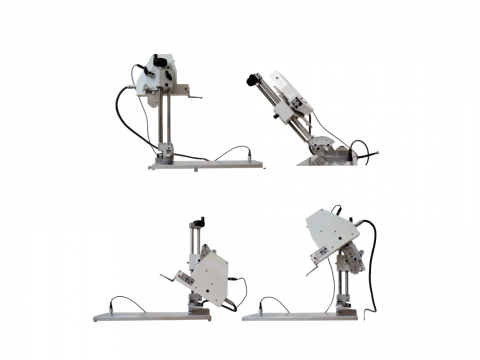

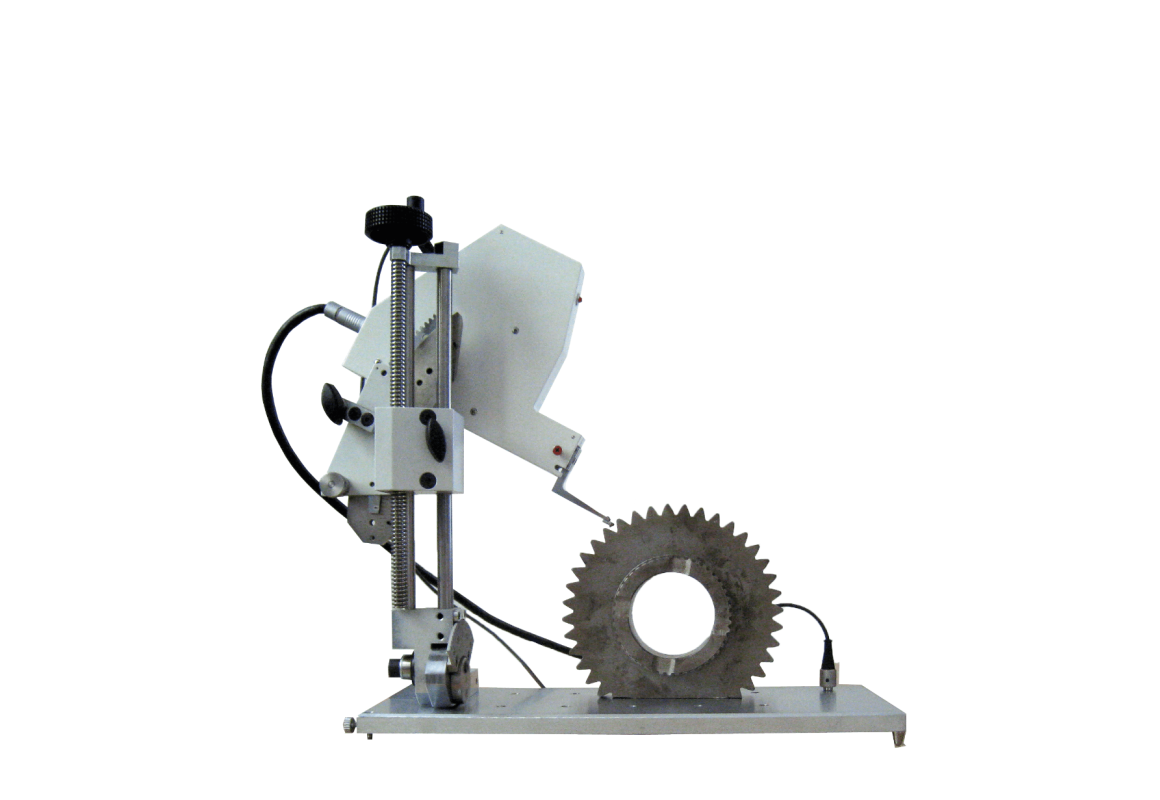

MTR-X Bench Hardness Tester

ID：MTR-X

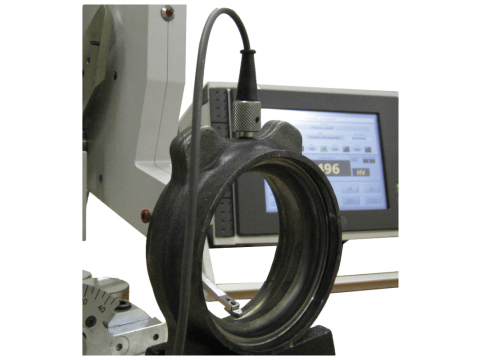

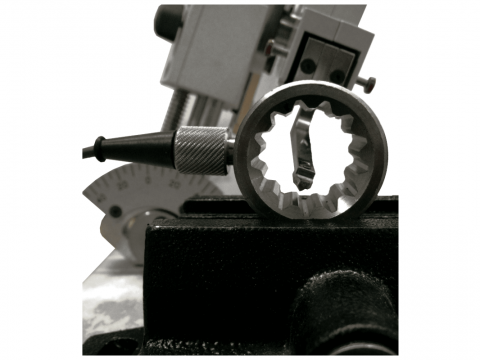

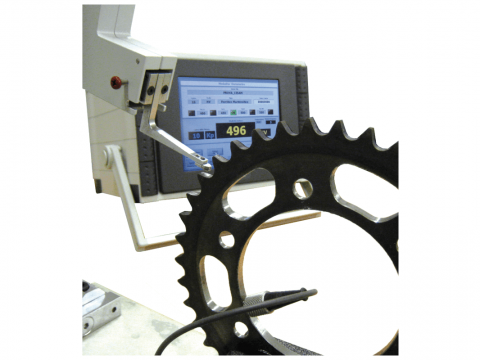

Ernst's MTR X hardness tester represents a significant breakthrough in metal hardness testing, thanks to its innovative Esatest® principle. This advanced hardness measurement method allows operators to take readings even in the most difficult-to-reach areas, such as interiors, cavities, joints, and gears.

Features Video

Product Advantages

Measurement Capability: The system can measure across a wide range of loads, including very low ones, and display results in various hardness scales (Brinell, Vickers, Rockwell, and Super Rockwell).
Technology: By leveraging the conductive properties of a boron-doped diamond indenter, Esatest® technology utilizes the correlation between penetration and residual electrical resistance. The plasma-based chemical deposition method is used to create the boron-enriched diamond indenter, which enhances electrical resistance measurements.
With the ACCREDIA (ILAC MRA) calibration certificate according to DIN 50158-2, the MTR X hardness tester is a highly reliable and accurate solution for metal hardness testing.
Choose Ernst's MTR X hardness tester for your metal hardness measurement needs and experience the precision, reliability, and innovation this instrument offers.

Technical Details

Power supply	240VAC - 50/60Hz
Loads	MOD. A: 1kgf - 10 kgf MOD. B: 0,5kgf - 10kgf MOD. C: 0,2kgf - 2kgf
Norms and certifications	DIN 50158
Minimum measurable diameter	2mm exterior / 12 mm interior
Selectable functions	calibration - hardness measurement - test load - test specimen -hardness scale - materials - rod type - diamond type - language - comments - tolerances - file management - printing - statistics - hardness curve - overlapping curves - function block
Output interfaces	USB - internal Ethernet
Reading	on display 8.4" touch-screen 800px x 600px
Languages	Italian, English, German, Other languages on request
Load application method	automatic acquisition of load and resistance values in real time
Weight	20kg
Working principle	Ernst patent for electrical resistance measurement (DIN 50158)
Standard scales	HV - HRC - HRB - HB30 - N/mm² - HRF - HRD
Load time	the time of the test cycle depends on the selected load (max 12sec)
Working area dimensions	2mm x 2mm
Memory	Over 100 GB to memorize hardness values
Overall dimensions	40cm x 50cm x 30cm
