MVR200/MVR300 Manual Vision System

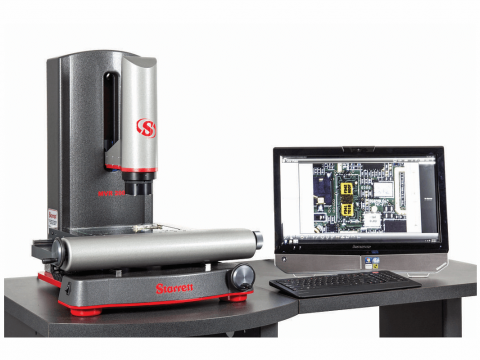

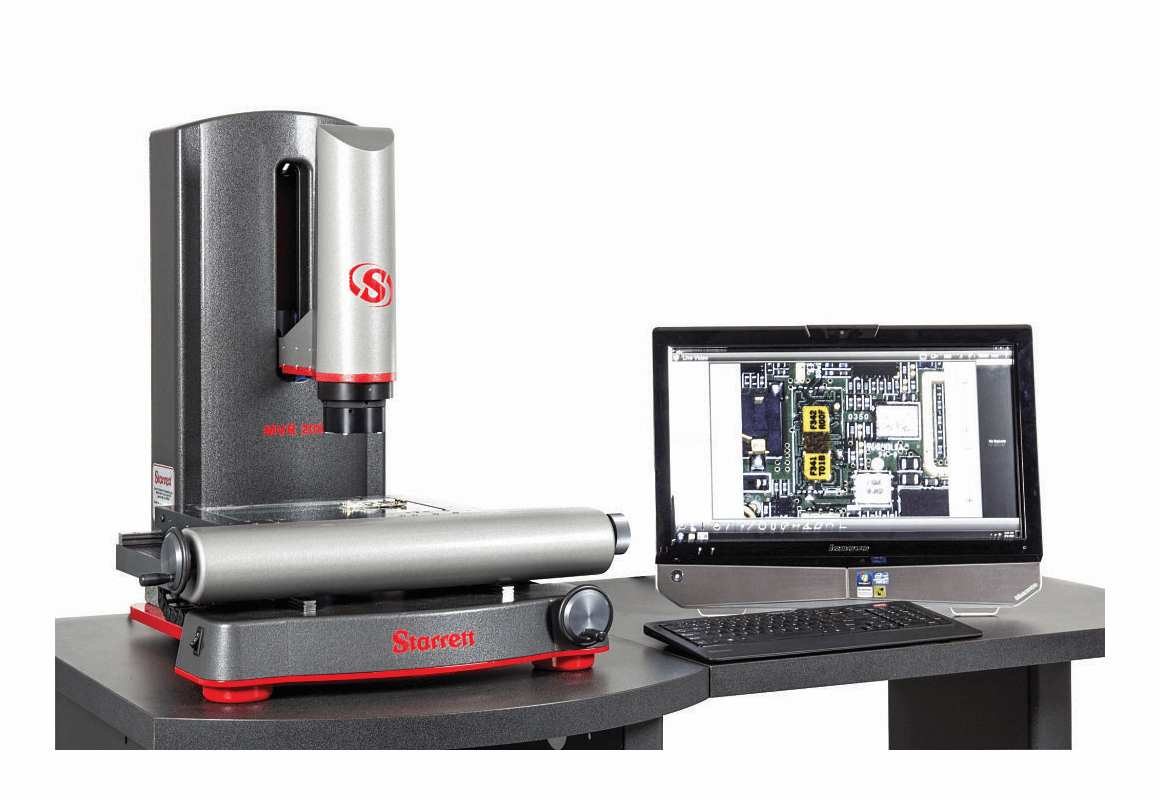

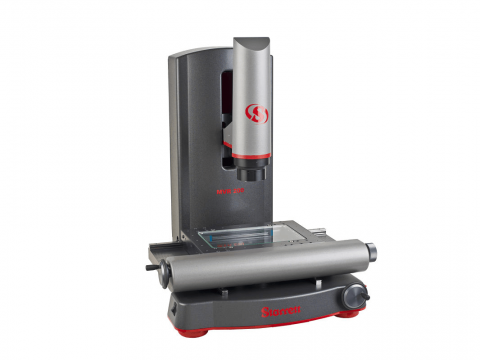

The MVR Manual Vision Metrology Systems are ideal when quick measurements for quality control are needed. They are available with dedicated zoom optics or a quick-change bayonet lens mount which accepts interchangeable zoom optics or telecentric lenses for micron-level resolution. With a maximum field of view (FOV) of 0.93" (24mm), and seamlessly integrated stage motion, the MVR series is capable of measuring parts with a length up to 8" (200mm) or 12" (300mm) for the MVR 200 and 300, respectively. The operator interface is the MetLogix M3 software that displays a live video image of the part plus geometry tools and digital readings. The image of the part can be resized using zoom and measurements can be taken by simply touching a feature on the touch-screen monitor. MVR hardware features include a granite base for maximum stability, precision linear guides for smooth, accurate stage motion and a motorized Z-axis with variable speed control.
