Precision Gauge Blocks
ID：Precision Gauge Blocks
We are proud of producing our gauge blocks exclusively at our factory work floor in Aschaffenburg. Only in this way it is possible to monitor and guarantee the outstanding quality of our products.Being an accreditated DAkkS laboratory we are equipped with the required technology to assure the high standard of quality.
-
Gauge Blocks in Steel
- Up to 1000 mm to DIN EN ISO 3650
- Grades K,0, 1 and 2
- Single gauge blocks

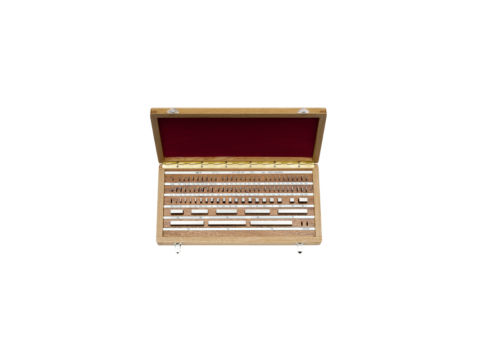

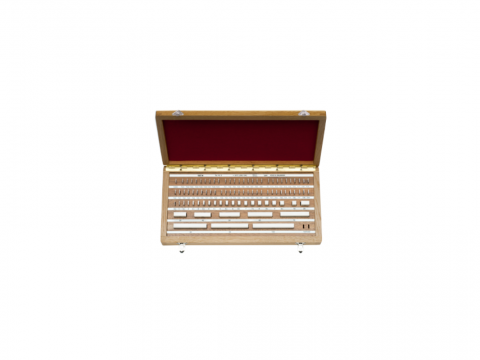

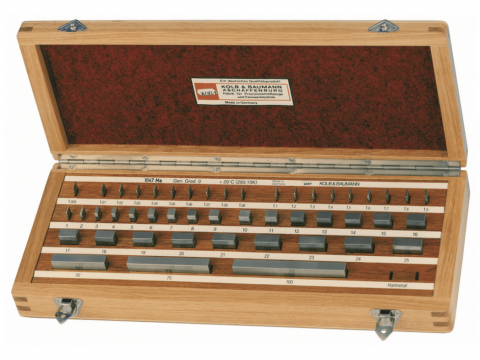

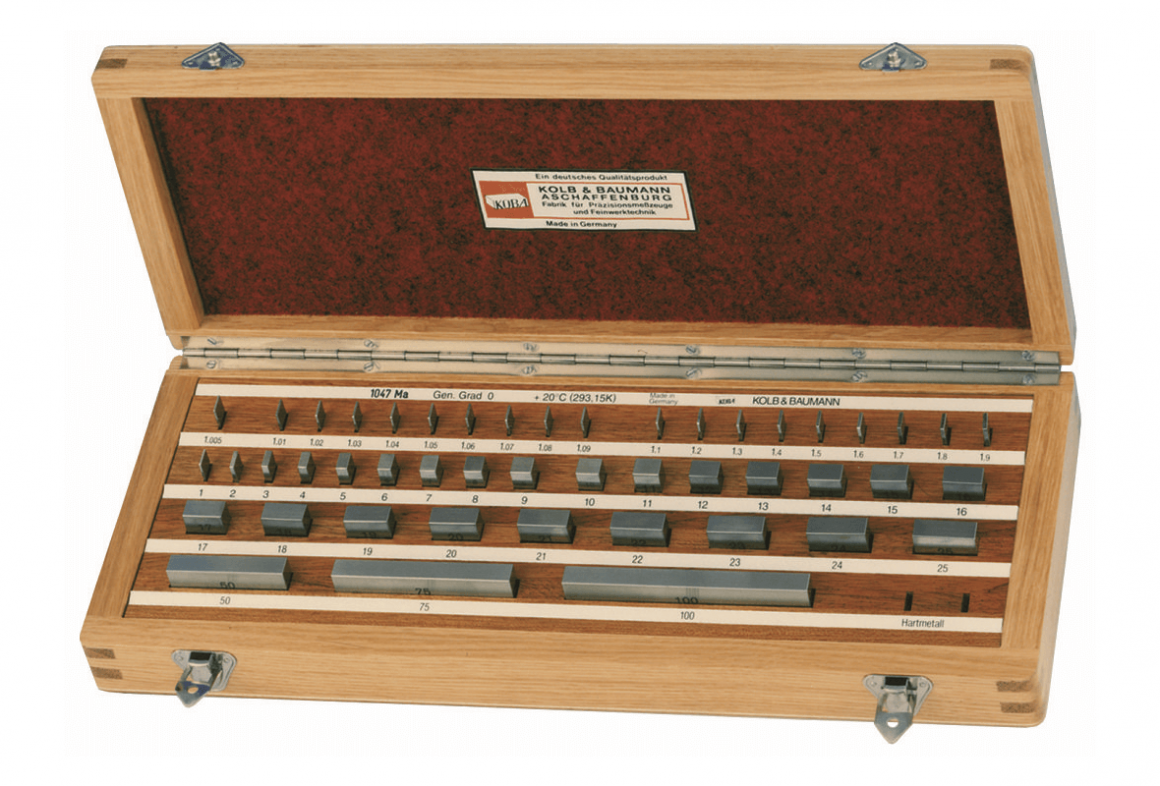

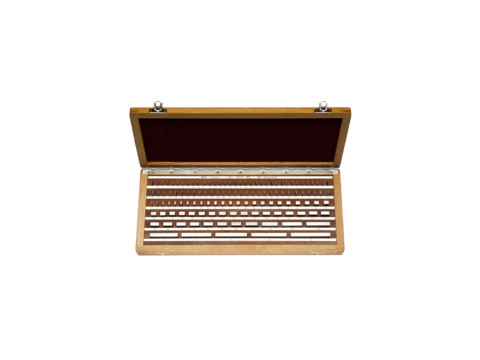

- Sets, standard as well as individual compositions
- Special designs
- Custom-made lengths
- High wear-resistance
- Hardness > 800 HV
- Good dimension stability due to extensive stabilisation process
- Thermal expansion coefficient
- For steel gauge blocks ≤ 100 mm α= 11,9 * 10-6 °K-1
- For steel gauge blocks > 100 mm α= 11,5 * 10-6 °K-1
- Traceable calibration certificate (laboratory accredited to DIN EN ISO/IEC 17025) included in delivery
Ceramic Gauge Blocks to DIN EN ISO 3650
up to 100 mm > grades K, 0, 1 and 2 single gauge blocks sets, standard as well as individual compositions custom-made lengths available from a minimum number of pieces resistant to corrosion wear resistance about four times better in comparison to steel high dimension stability due to Yttrium-Stabilisation thermal expansion coefficient α= 9,4 * 10 6 °K 1 traceable calibration certificate (laboratory accredited to DIN EN ISO/IEC 17025) included in delivery.
Carbide Gauge Blocks (Tungsten Carbide) to DIN EN ISO 3650- Up to 100 mm
- Grade K, 1, 0 and 2
- Single gauge blocks
- Sets, standard as well as individual compositions
- Special designs on enquiry
- Custom-made lengths
- Wear resistance about 1,5 times better in comparison to steel
- Hardness > 1350 HV
- Best long-term stability of all materials thermal expansion coefficient α = 4,5 * 10 6 °K 1
- Traceable calibration certificate (laboratory accredited to DIN EN ISO/IEC 17025) included in delivery
