Regular levels
ID：Regular Levels

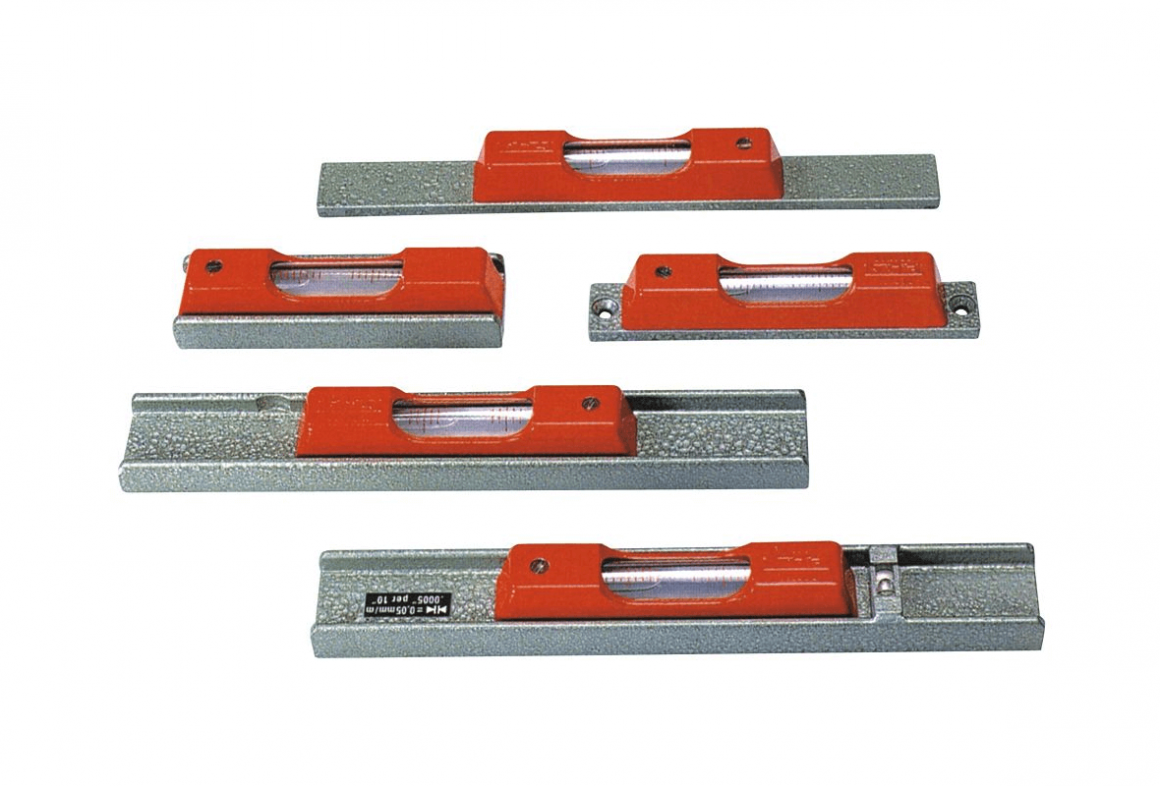

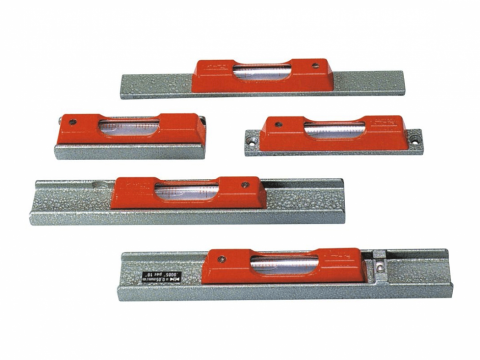

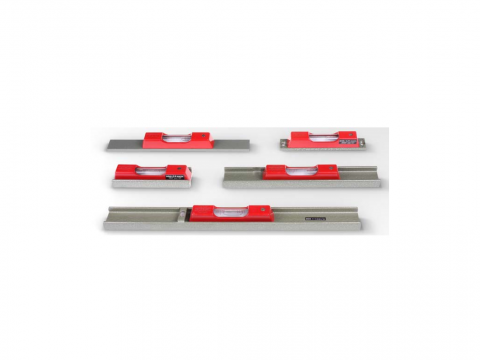

110 - REGULAR LEVELS, FLAT BASE
112 - REGULAR GROOVED LEVELS
114 - 2 VIAL MECHANIC LEVELS
116 - SHORT LEVELS
-
110- Flat base
- Steel base
- Length: 100, 150, 200 mm
- Weight: 170, 210, 250 gr
- For any ordinary use, railroad tracks layers, mechanics, various kinds of installers
112 - Grooved base- Grooved cast-iron base
- Width: 28 mm
- Length: 100, 150, 200, 250, 300 mm
- Weight: 260, 300, 400, 550, 620 gr
- For mechanics and any controls with usual precision needs on plane and cylindrical surfaces
114 - 2 vials mechanic levels- Main vial is adjustable and protected
- Grooved cast-iron base, width 28 mm, grinded height 28 mm
- Length: 150, 200, 250, 300 mm
- Weight: 320, 420, 570, 640 gr
- This model is suitable for the installation of machines of various kinds, as well as the rough levelling of machine-tools and the adjustement of parts, tools and transmission shafts
- For plane and cylindrical surfaces
116 - Short levels- Grooved cast iron base, width: 28 mm, base height: 14 mm
- Length: 100 mm, height: 23 mm, weight: 260 gr
130 - Screw-on levels- These levels come in the following sensitivities: 1 - 0.4 - 0.1 - 0.05 (mm/m)
- Length: 120 mm, width: 20 mm, height: 21 mm, weight: 190 gr
- Screw holes: Ø 4 mm - interaxial distance: 110 mm
