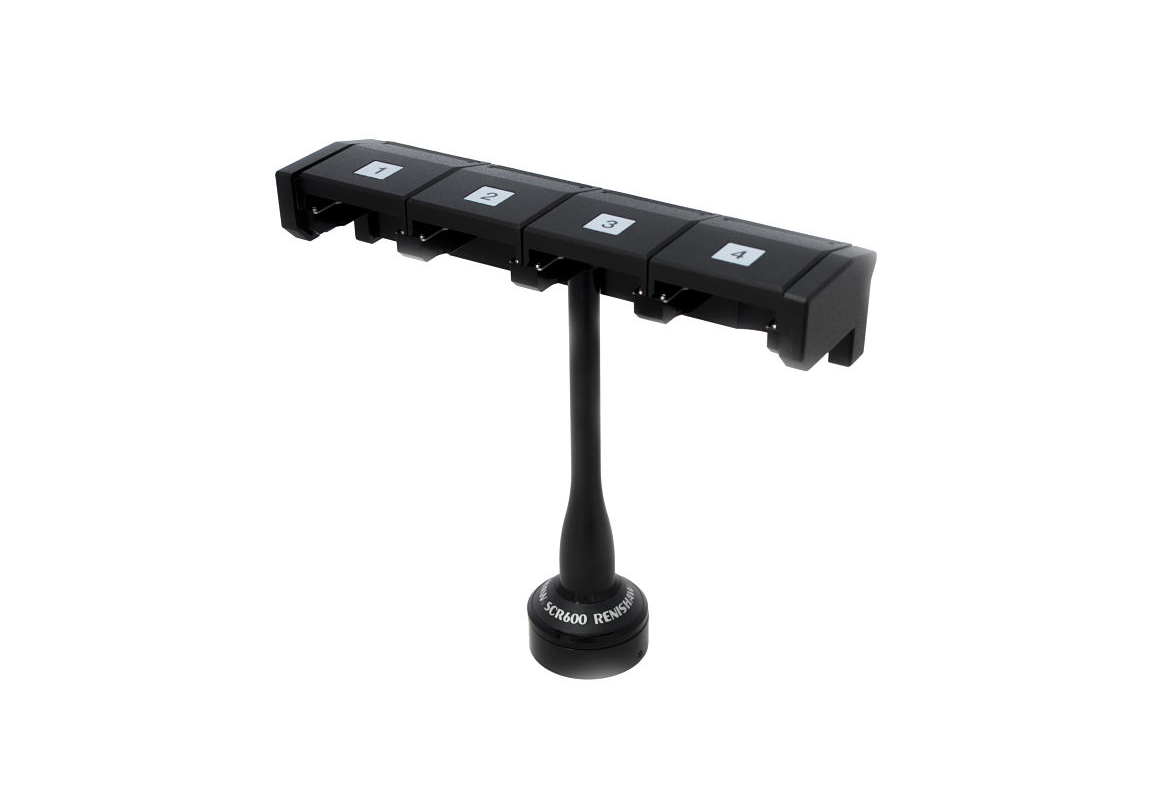

SCR600 Module Changing Rack
ID：SCR600
The SCR600 is a passive stylus change rack and so it requires no electrical connections. It is protected from overtravel (in the probe entry direction) by a mechanism in the base which can be manually reset.
The SCR600 houses up to four SP600 stylus modules per rack and any number of racks can be used in a system.
-
- A passive stylus change rack for use with the SP600 probe family
- No electrical connections required
- Overtravel protection in the probe entry direction by a mechanism in the base which can be manually reset
- Holds up to four SH600 stylus holders per rack
- Any number of racks can be used in a system
- Height: 225 mm (8.86 in)
- Width: 235 mm (9.25 in)
