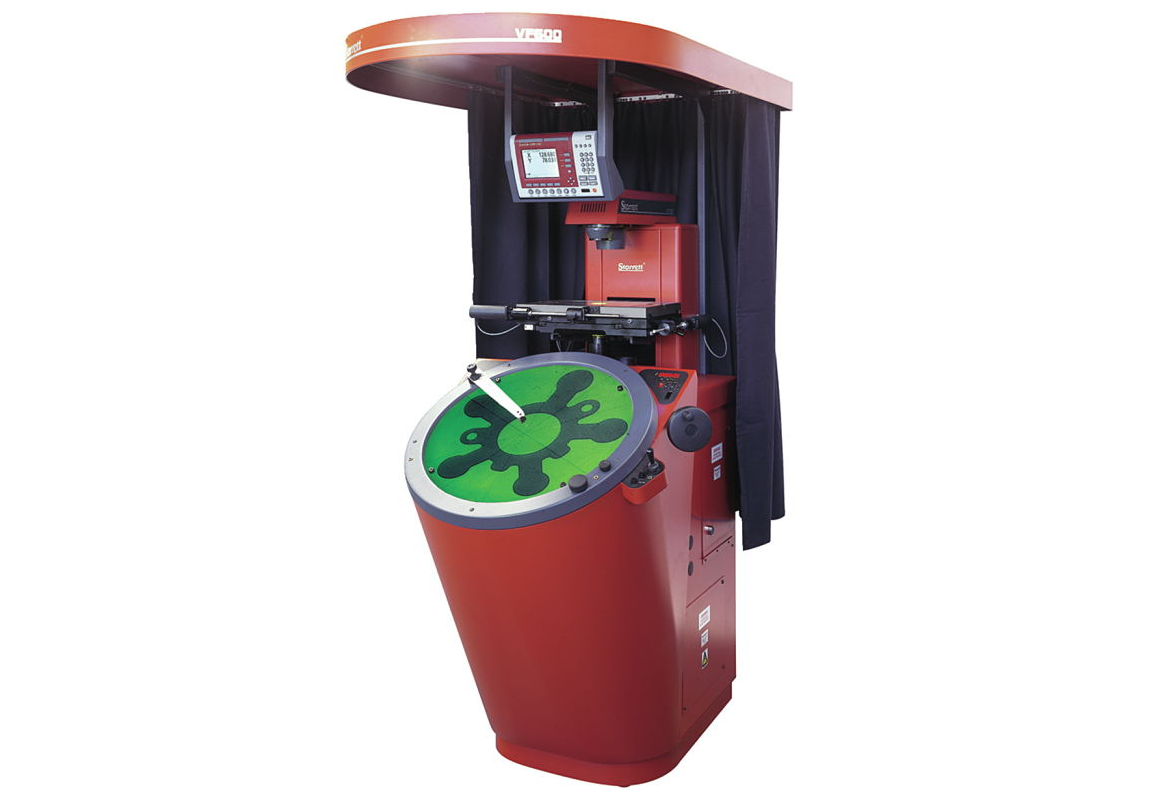

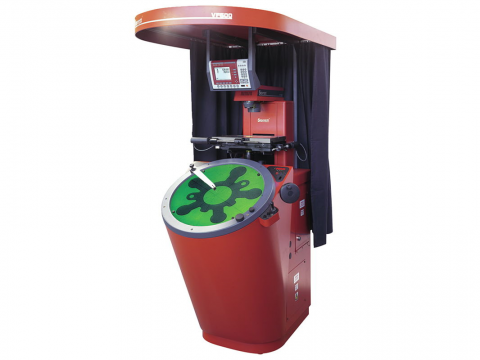

VF600 Vertical Floor Standing Optical Comparator
ID：VF600
If your measuring requirements demand the use of a large screen vertical axis comparator, then look no further than the VF600. Ideal for the larger components found in the electronics, stamping, and extrusion industries, the VF600 is the ultimate in vertical axis optical comparators; a design based on years of knowledge in the manufacture of high performing optical comparators.
-
- 8" x 4" X-Y travel workstage (200 x 100mm)
- Available with MetLogix M1 tablet, M2 measuring software with touch-screen with PC, or Mx-Series digital readout system
- Screen is angled 30° from horizontal for clear, easy viewing
- Projection lens turret with three lens capacity (lenses not included)
- Turret mounted condenser system complete with two lenses and yellow/green filter with provision to mount further accessories
- Full canopy and curtains
- Linear encoder (glass scale) with 0.5 µm resolution on both X and Y axes
-
